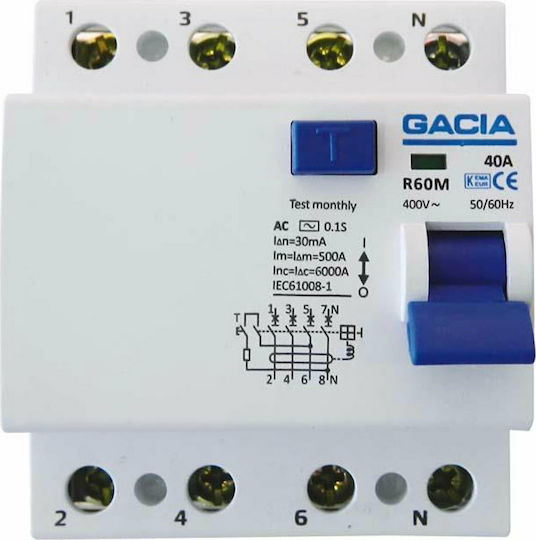

The Gacia four-pole Type AC DIN-rail residual current device detects leakage in single-phase and three-phase AC circuits. It has a rated current of 40 A, a sensitivity of 30 mA and a rated voltage of 400 V.
- Product type: DIN-rail residual current device
- Type: AC
- Number of poles: 4
- Rated voltage: 400 V
- Rated current: 40 A
- Residual current: 30 mA
- Operating frequency: 50/60 Hz
- Ingress protection rating: IP20
- Operating temperature: -25 °C to +50 °C
- Colour: White
- Material: Plastic
- Weight: 0.340 kg
- Height: 81 mm
- Width: 70 mm
- Length: 77.5 mm
- Cable cross-section: 10 mm
- Copper busbar: 25 mm
- Contact position indicator: Yes
- Breaking capacity: 6 kA
- Short-circuit breaking capacity: 6 kA
- Surge protection: Yes
- Certification: IEC61008-1
- Residual current protection type: Electromagnetic
- Terminal connection type: Cable, L- and U-type copper busbar
- Mechanical operations: 10,000
- Electrical operations: 4,000
- Type
- Earth Leakage
- Number of Poles
- 4
- Voltage
- 400 V
- Nominal Voltage
- 40 A
- Leakage Current
- 30 mA
- with Energy Consumption Meter
- No
- with Timer
- No
- Type of Residual Current Relay
- Type AC
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
