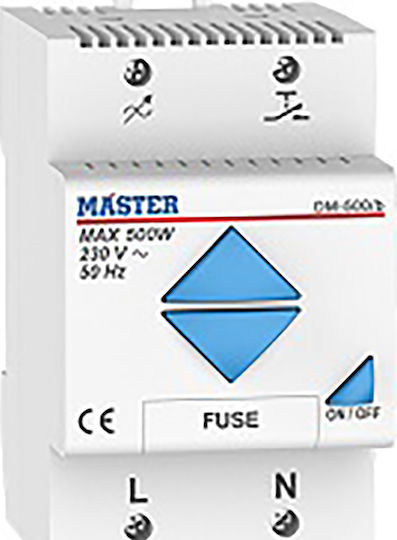

The Dimmer rail DM – 500 / b is an innovative digital technology product of Leading Edge & Trailing Edge type, designed for lighting intensity adjustment and energy saving. It maintains absolute linearity in light intensity variation with alternative type lamps such as EDISON - Filament LED, Dimmable LED, and Dimmable CFL as well as resistive – halogen.

Operation:

• Button 1: (ON / OFF) for turning the load on and off.
• Buttons 2 & 3: (UP & DOWN) for adjusting the light intensity from 1% to 100%.

Remote control:

• Input for wired remote control command with the ability to adjust lighting.

Function selection:

• Switch from Leading Edge to Trailing Edge with a long press of 6 seconds on buttons No.1 – No.2 – No.3.

Minimum threshold adjustment:

Ability to control loads of electric single-phase motors with the procedure:

• Hold button No.1 (ON / OFF).
• Adjust with buttons No.2 & No.3 the revolutions at the lowest allowable threshold.
• Release button No.1 to complete the adjustment.

Memory is done digitally, ensuring safety during power loss.

Specifications:

• Lighting Regulator (dimmer): IGBT - Digital
• Operation: Soft Start
• Safe operating voltage: 180 – 230V AC
• Network frequency: 50Hz
• Control capability: 500 Watt
• Control loads: Edison – Filament LED, Dimmable LED, Dimmable CFL, Halogen lamps – resistive
• Operating ambient temperature: -20°C to +50°C
• Mounting: Clip on 35x7.5mm rail (DIN 45277)
• Safety: Electronic (protection from short circuit, overvoltage, overheating with automatic reset)
• Conductors terminals: From ∅0.5 mm to ∅3.5 mm

The product complies with the directives 2014/55/EU on low voltage and 2014/30/EU on electromagnetic compatibility.
