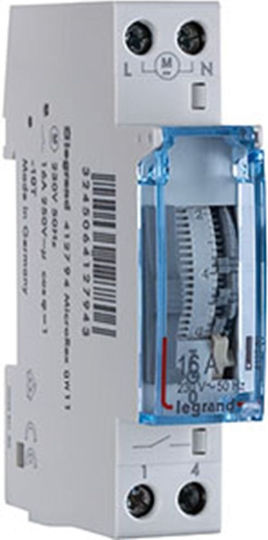

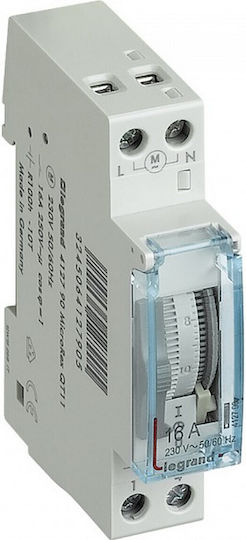

The analog timer Legrand 412790 (MicroRex T11 series) is the most reliable solution for automatic control of electrical circuits. With an exceptionally compact design measuring only 1 module (17.5mm) in width, it allows precise programming of lighting, heating, or irrigation systems, saving valuable space in the electrical panel.

Its main advantage is the 100-hour backup operation, which ensures that the device will continue to keep time and follow your schedule even after a power outage.

• Daily Programming: Features a 24-hour rotating dial with a minimum switching time (step) of 15 minutes.

• Backup Operation: Built-in rechargeable battery that maintains the time setting for up to 100 hours in case of power failure.

• Manual Override: 3-position switch on the front panel allowing selection between: Permanent ON, Automatic (Program), and Permanent OFF.

• High Accuracy: Mechanism with clock accuracy of ±1 second per day.

• Easy Installation: Designed for direct mounting on a DIN rail, occupying minimal space (1 module).

• Manufacturer: LEGRAND
• Series: MicroRex T11
• Type: Daily Analog Timer
• Power Supply: 230 V~, 50/60 Hz
• Contact: 1 NO/NC (Changeover) 16 A - 250 V~
• Minimum Step: 15 minutes
• Backup: 100 hours (Rechargeable)
• Width: 1 module (17.5 mm)
• Protection Rating: IP20
• Code (PN): 412790
• Barcode (EAN): 3245064127905
