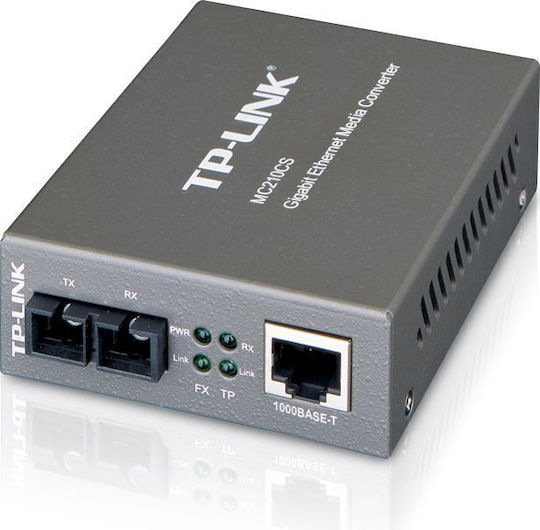

The MC210CS media converter allows you to convert a 1000BASE-LX/LH optical signal into a signal transmitted via a 1000Base-T copper cable and vice versa. It operates according to IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, using single-mode optical fiber with SC connectors.

The MC210CS converter ensures high-speed wired data transmission with long-wave LX optical transmission. It receives and sends signals with a wavelength of 1310nm and can operate as an independent device or be mounted in a TP-LINK 19' cabinet.

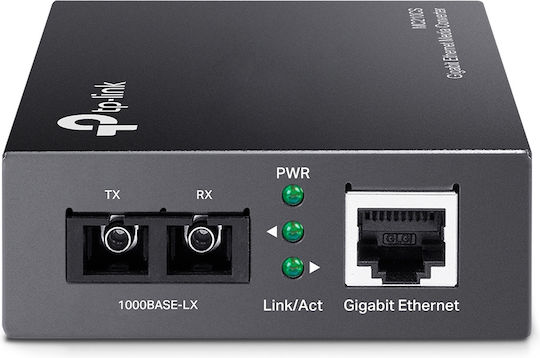

The TX port features automatic crossover (Auto MDI/MDI-X) functionality, and there are LED indicators on the front panel that inform about the device's operating status. The MC210CS converter uses single-mode optical fiber to transmit an optical signal over a distance of up to 15 km.

• Manufacturer symbol: MC210CS
• Product name: TP-Link MC210CS 1000BaseT (RJ45) - 1000BaseLX (SC) SingleMode 15km Converter
• Product: TP-Link
• Product category: Media converter
• Network protocol and connection type 1: GigabitEthernet 1000BaseT - RJ45
• Network protocol and connection type 2: GigabitEthernet 1000BaseLX - SC
• Cabling type: single-mode optical fiber 9/125
• Optical fiber range: 15 km
• Wavelength: 1310 nm
