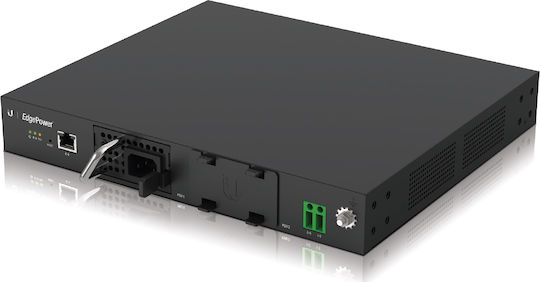

The Ubiquiti EdgePower EP-54V-150W power supply is a modular DC system for connecting to EdgePoint routers and switches, supplying power to connected PoE devices. The universal-input power supply unit delivers 54 V and 150 W, while the maximum output power reaches 300 W with two power supply units.

It is managed via a 10/100 RJ45 Ethernet port and Web UI. LED indicators show system power status, the Ethernet management port connection, and the status of the power supply units. It can be mounted in a 1U rack.

• Type: DC power supply
• Quantity: 1
• Input voltage: 100–240 V AC
• Input frequency: 50–60 Hz
• Output voltage: 54 V
• Output power: 150 W with 1 power supply unit, 300 W with 2 power supply units rated at 150 W each
• Network port: 1 × 10/100 RJ45 Ethernet
• Management: Ethernet In-Band, Web UI
• Rack mounting: 1U height
• Dimensions without mounting brackets: 299.8 × 286.9 × 42.55 mm
• Weight without mounting brackets: 2.7 kg
• Operating temperature: 0 to 40 °C
• Operating humidity: 10 to 90% RH
• ESD/EMP protection: ±24 kV air discharge and ±24 kV contact discharge
• Certifications: CE, FCC, IC
