Technical Specifications

• Air connection diameter: 1/4"
• Supported seam diameters: 2.4, 3.2, 4.0, 4.8, 6.4 [mm]
• Air supply hose diameter: 3/8"
• Maximum stroke length of the pressure plunger: 16mm - 5/8"
• Potential crushing power: 1400 kg
• Operating pressure: 90 psi (6.3bar)
• Required air flow: 6.3 bar
• Sound pressure: 73 dB
• Vibrations: 0.7 m/s

Equipment

• Sewing machine

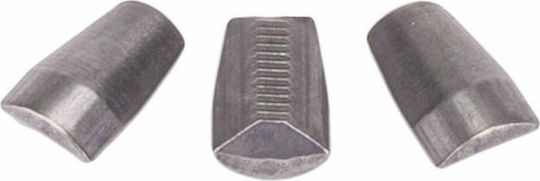

• Tips for managing different seams (2.4 / 3.2 / 4.0 / 4.8 / 6.4 [mm])

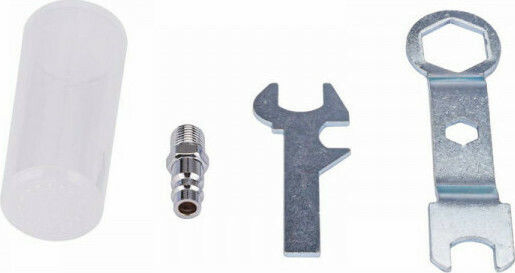

• Air connection buttons (quick connect)
• Original packaging
• Instruction manual
• Easy tip change

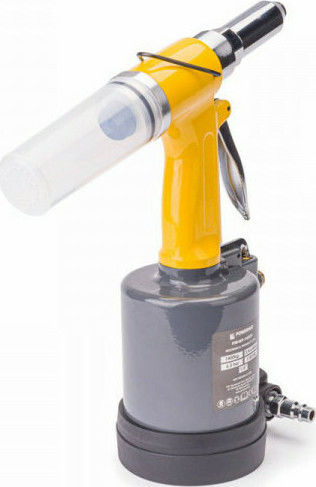

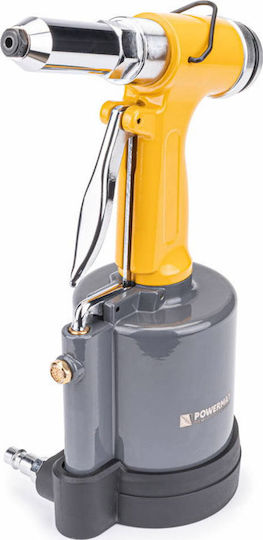

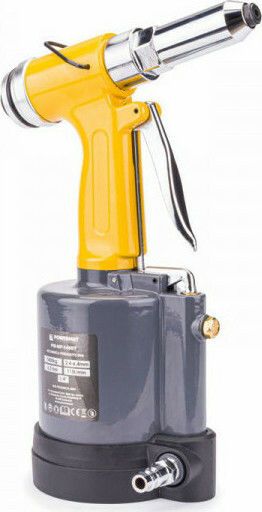

The set includes 2 buttons that allow you to easily replace the tip and any spare part. High-quality pneumatic sewing machine designed for use with seams from 2.4 mm to 6.4 mm. Allows for permanent connections with aluminum, stainless steel, steel, and copper. Equipped with a container designed for collecting waste generated during the sewing process. Ideal for use in production factories.

Product Features

• Excessive quality
• Supports seams with diameters from 2.4 to 6.4 mm, made of aluminum, stainless steel, steel, and copper
• Has a waste container for the waste generated during sewing
• Powder coating
