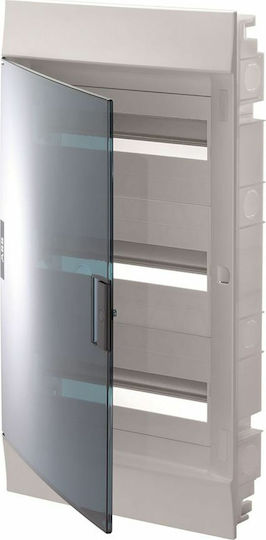

Flush-mounted plastic distribution boards, MISTRAL41F from ABB.

IP 41, IK 08 (5 Joules), electrical insulation class II.

Made of self-extinguishing thermoplastic material in white color (RAL 9016), fire-resistant up to 650°C according to standard IEC 60695-2-11.

• Removable frame for easier wiring and installation of components.
• Neutral and grounding terminals with screws.
• Transparent door in petrol-blue shade or with a white door, opening left or right up to 180°, with or without a lock.
• Available in 1 to 4 rows with an axial distance of 150 mm.
• Accommodate from 4 to 72 elements of 17.5mm width.
• Removable pre-punched plates on the top and bottom sides of the board.
• Pre-punched holes on the side sections for direct cable entry from the wall.

Compliant with standard: IEC 60670-24.
