Fuse Box

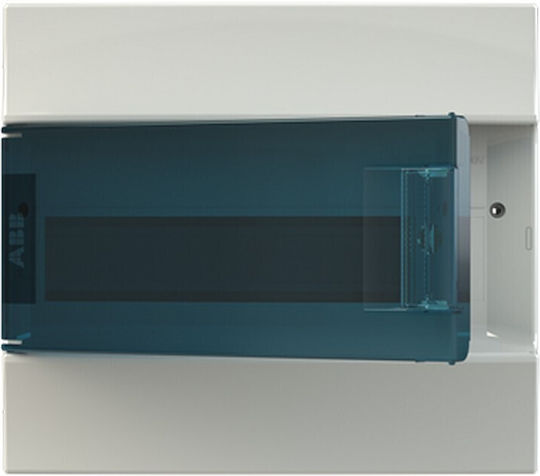

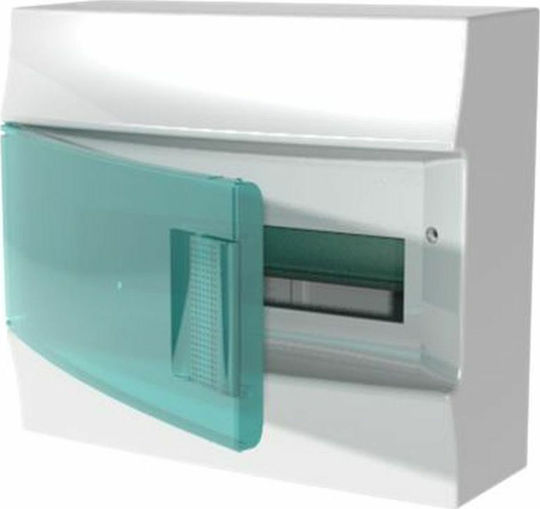

Abb Wall Mounted Electrical Fuse Box 1 Row 13 Elements W292xH257xD120mm Code: 75426

The ABB plastic electrical distribution board is wall-mounted and has one row for 13 modules. It is made of white, self-extinguishing thermoplastic material, resistant to fire up to 650 °C in...

The ABB plastic electrical distribution board is wall-mounted and has one row for 13 modules. It is made of white, self-extinguishing thermoplastic material, resistant to fire up to 650 °C in accordance with IEC 60695-2-11. It has an IP41 protection rating and Class II electrical insulation.

Pre-scored cable entry points on the top, bottom and rear allow...

See Description & Specifications See Description & Specifications
29 98 €
Delivery by Tue, 24 Nov
14,00 €   shipping cost
Sent from Greece
From E-kousis 5.0 (5)
Greece
19 pieces
See Electrical Equipment on the page of E-kousis

Learn more about invoicing

Description & Specifications

The ABB plastic electrical distribution board is wall-mounted and has one row for 13 modules. It is made of white, self-extinguishing thermoplastic material, resistant to fire up to 650 °C in accordance with IEC 60695-2-11. It has an IP41 protection rating and Class II electrical insulation.

Pre-scored cable entry points on the top, bottom and rear allow cables to enter from the wall. Boards with more than 8 modules are equipped with screw-type neutral and earth terminals.

  • Mounting: Wall-mounted
  • Material: Self-extinguishing thermoplastic
  • Colour: White
  • Number of rows: 1
  • Number of modules per row: 13
  • Protection rating: IP41
  • Electrical insulation class: II
  • Fire resistance: Up to 650 °C
  • Fire resistance standard: IEC 60695-2-11
  • Module width: 17.5 mm
  • Height: 257 mm
  • Width: 292 mm
  • Depth: 120 mm
  • Pre-scored cable entry points: On the top, bottom and rear
  • Neutral and earth terminals: Screw-type

Manufacturer

Product Number
75426

Specifications

Placement
Wall mounted
Material
Plastic
Number of Rows
1
Number of Elements per Row
13
Colour
White
Protection Certification
IP41

Attributes

with Fuses
No
Waterproof
No
Cabinet
No

Dimensions

Width
292 mm
Height
257 mm
Installation Depth
120 mm
