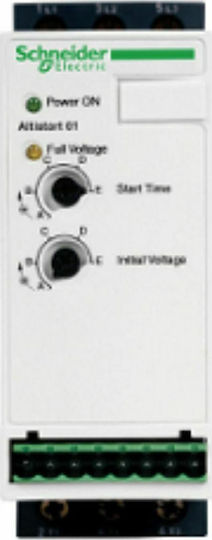

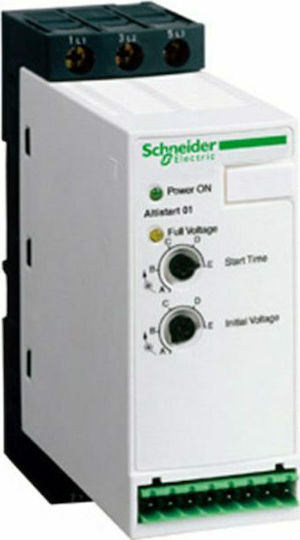

Schneider Electric Altistart 01 Starter Industrial Type Smooth Starter 12A 110-480V 1.5-5.5KW ATS01N112FT
Misc Industrial Building Equipment

Schneider Electric Altistart 01 Starter Industrial Type Smooth Starter 12A 110-480V 1.5-5.5KW ATS01N112FT

Key features:

  • Type: Starter
  • Voltage: 110-480V
  • Power: 1.5-5.5kW
  • Current: 12A
See full description
268 90 €
Delivery Wed, 11 Nov - Tue, 17 Nov
29,00 €   shipping cost
Sent from Greece
From Getters 4.6 (113)
4.6 (113 reviews)
Greece
4 pieces
See Industrial Materials on the page of Getters

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Review the product
Product report

Description

Description

The Schneider Electric Altistart 01 ATS01N112FT soft starter is designed for asynchronous motors and use in compact machines. It starts the motor with a voltage ramp and features an integrated bypass and heatsink.

  • Product family: Altistart 01
  • Type: Soft-start device for asynchronous motors
  • Application: Compact machines
  • Number of phases: 1 phase
  • Supply voltage: 110–480 V, with a tolerance of −10% to +10%
  • Motor power: 1.5 kW at 1 phase 230 V, 2.2 kW at 3 phases 230 V, 5.5 kW at 3 phases 400 V
  • Starter rated current: 12 A
  • Utilization category: AC-53B EN/IEC 60947-4-2
  • Current consumption: 60 A at rated load
  • Starting type: Voltage ramp
  • Power dissipation: 1 W at full load during starting and at the end, 61 W in transient state
  • Version: With heatsink
  • Function: Integrated bypass
  • Output voltage limits: 99–528 V
  • Supply frequency: 50–60 Hz, with a tolerance of −5% to +5%
  • Network frequency: 47.5–63 Hz

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Type
Starter

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Schneider Electric Altistart 01 ATS01N112FT soft starter is designed for asynchronous motors and use in compact machines. It starts the motor with a voltage ramp and features an integrated bypass and heatsink.

  • Product family: Altistart 01
  • Type: Soft-start device for asynchronous motors
  • Application: Compact machines
  • Number of phases: 1 phase
  • Supply voltage: 110–480 V, with a tolerance of −10% to +10%
  • Motor power: 1.5 kW at 1 phase 230 V, 2.2 kW at 3 phases 230 V, 5.5 kW at 3 phases 400 V
  • Starter rated current: 12 A
  • Utilization category: AC-53B EN/IEC 60947-4-2
  • Current consumption: 60 A at rated load
  • Starting type: Voltage ramp
  • Power dissipation: 1 W at full load during starting and at the end, 61 W in transient state
  • Version: With heatsink
  • Function: Integrated bypass
  • Output voltage limits: 99–528 V
  • Supply frequency: 50–60 Hz, with a tolerance of −5% to +5%
  • Network frequency: 47.5–63 Hz

Manufacturer

Manufacturer Details

Warnings & Safety Information
Type
Starter

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
