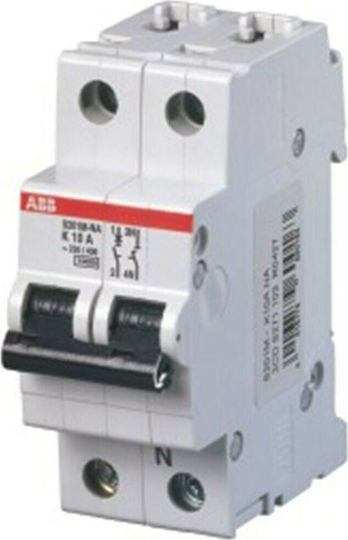

Abb Automatic Circuit Breaker 25A Double-pole AC 70382
Automatic Circuit Breaker

Abb Automatic Circuit Breaker 25A Double-pole AC 70382

Miniature circuit breakers SH200T characteristics B and C. Function: protection and control of circuits against overloads and short circuits. Applications: residential and commercial installations. Standards: IEC / EN 60898-1. With neutral disconnection NA.

See Description & Specifications
9 53 €
Delivery by Thu, 12 Nov
14,00 €   shipping cost
Sent from Greece
From eDendrinos 4.9 (4)
4.9 (4 reviews)
Greece
4 pieces
See Electrical Panel Supplies on the page of eDendrinos

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing

Reviews (4)

Reviews

4.5
4
4.5
Review this product
  1. 3
  2. 4 stars
    0
  3. 1
  4. 2 stars
    0
  5. 1 star
    0
Review this product
Product report

Description & Specifications

The ABB SH201T-C25NA miniature circuit breaker mounts on a DIN rail and has one pole with a neutral on the right. Its Type C tripping curve and two trip mechanisms provide overload protection through thermal delay and short-circuit protection through electromechanical tripping. It is suitable for residential and commercial installations and complies with IEC/EN 60898-1.

It features screw terminals with a cable chamber for conductors up to 25 mm², permanent laser-printed markings and a connection diagram, as well as captive screws. It is compatible with the S200 series (System pro M compact) and standard busbars.

  • Number of poles: 1 pole and neutral
  • Rated current: 25 A
  • Operating voltage: 230 V AC
  • Frequency: 50/60 Hz
  • Tripping curve: C
  • Short-circuit breaking capacity: 3 kA
  • Degree of protection: IP20
  • Enclosure protection: IP40
  • Maximum cable cross-section: 25 mm²
  • Mounting: DIN rail
  • Terminals: Screw terminals
  • Colour: Light grey
  • Standard: IEC/EN 60898-1
  • Compatibility: S200 series (System pro M compact), standard busbars

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
2
Rated Current
25 A
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
Yes
DC
No
