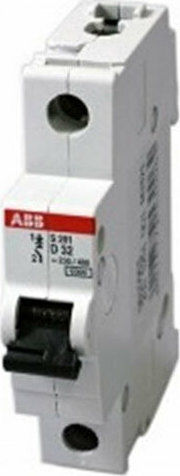

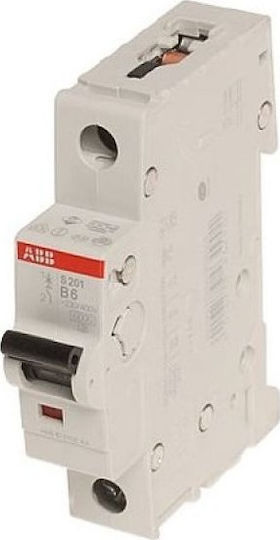

Abb Automatic Circuit Breaker 20A Single-pole AC 70311
Automatic Circuit Breaker

Abb Automatic Circuit Breaker 20A Single-pole AC 70311

The ABB SH201T-B20 miniature circuit breaker mounts on a DIN rail and uses a delayed thermal trip mechanism for overload protection and an electromechanical mechanism for short-circuit protection. It...

The ABB SH201T-B20 miniature circuit breaker mounts on a DIN rail and uses a delayed thermal trip mechanism for overload protection and an electromechanical mechanism for short-circuit protection. It is suitable for residential and commercial electrical installations and complies with the IEC/EN 60898-1 standard.

The screw terminals accept cables with a...

See Description & Specifications See Description & Specifications
3 77 €
Delivery by Thu, 12 Nov
14,00 €   shipping cost
Sent from Greece
From Kea SA 4.9 (6)
4.9 (6 reviews)
Greece
20+ pieces
See Electrical Panel Supplies on the page of Kea SA

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Review the product
Product report

Description & Specifications

The ABB SH201T-B20 miniature circuit breaker mounts on a DIN rail and uses a delayed thermal trip mechanism for overload protection and an electromechanical mechanism for short-circuit protection. It is suitable for residential and commercial electrical installations and complies with the IEC/EN 60898-1 standard.

The screw terminals accept cables with a cross-sectional area of up to 25 mm². The markings and connection diagram are laser-printed, while the retaining screws remain attached to the circuit breaker body. It is compatible with the S200 series (System pro M compact) and standard busbars.

  • Type: DIN-rail miniature circuit breaker
  • Number of poles: 1
  • Rated current: 20 A
  • Rated voltage: 230 V AC
  • Frequency: 50/60 Hz
  • Trip curve: B
  • Short-circuit breaking capacity: 3 kA
  • Overload protection: Delayed thermal trip
  • Short-circuit protection: Electromechanical trip
  • Terminals: Screw terminals
  • Maximum cable cross-sectional area: 25 mm²
  • Degree of protection: IP20
  • Enclosure protection: IP40
  • Colour: Light grey (RAL 7035)
  • Standard: IEC/EN 60898-1
  • Compatibility: S200 series (System pro M compact), standard busbars

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
1
Rated Current
20 A
Operating Curve
Curve B

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve B

Suitable for domestic circuits and lighting, it activates quickly at low overcurrents.

Power Supply

AC
Yes
DC
No
