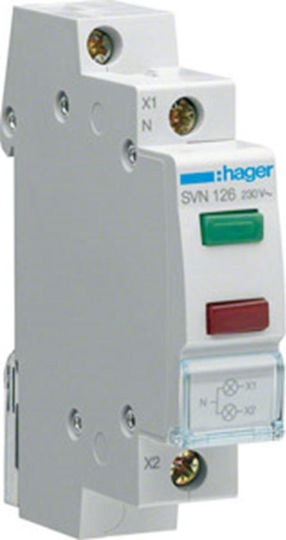

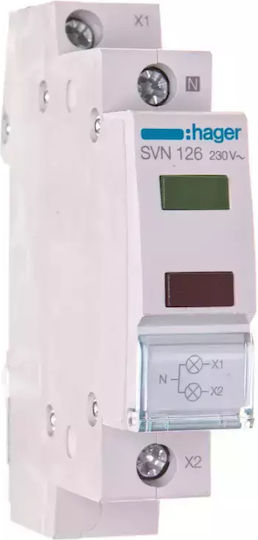

The Hager SVN126 double panel indicator light uses two LED indicators, in red and green, for operation at a rated voltage of 230 V. It has screw terminals, a rated insulation voltage of 250 V and a rated impulse withstand voltage of 4,000 V.
- Light source type: LED
- Number of lights: 2
- Indicator colours: Red and green
- Rated operating voltage: 230 V AC
- Rated insulation voltage: 250 V
- Rated impulse withstand voltage: 4,000 V
- Rated frequency: 50/60 Hz
- Connection: Screw terminals
- Total power loss at rated current: 0.8 W
- Stranded conductor cross-section: 0.75–6 mm²
- Solid conductor cross-section: 0.75–10 mm²
- Operating temperature: -20 to 50 °C
- Storage temperature: -40 to 80 °C
- Installed product dimensions: 83 × 17.5 × 62 mm
- Number of modules: 1
- Product Number
- SVN126
- Colour
- Red
- Number of Indicator Lights
- Double
