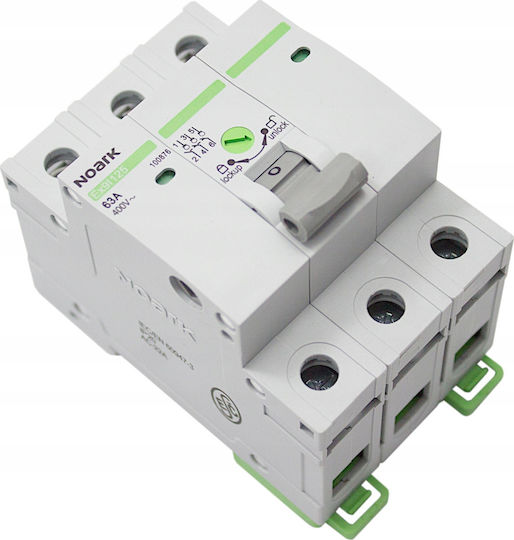

The Noark Ex9I125 switch disconnector isolates the power supply in electrical installations and is mounted on a 35 mm TH rail. The ability to lock it in the OFF position prevents accidental activation during maintenance work.
- Type: General purpose
- Number of poles: 3
- Rated current: 63 A
- Utilization category: AC-22A
- Rated voltage: 400 V
- Degree of protection: IP20
- Enclosure color: Grey
- Number of modules: 3
- Short-time withstand current (Icw): 0.76
- Rated breaking capacity: 1.26
- Switching function: Switch
- Positive opening of contacts: According to DIN VDE 0113
- Width: 3 modules
- Installation depth: 80 mm
- Dimensions: 89 × 54 × 78 mm (height × width × depth)
- Weight: 0.260 kg
Specifications
- Panel Switches Type
- General Use
- Number of Poles
- 3
- Rated Voltage
- 63 A
Features & Functions
- WiFi
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
