Gacia Phase 2-Pole Earth Leakage Relay 25A 230V 2x25A 6KA 300mA Type A

Key features:

  • Number of Poles: 2
  • Short Circuit Withstand: 6kA
  • Nominal Voltage: 230V
  • Nominal Current: 25A
  • Leakage Current: 300mA
See Description & Specifications

18 14 €
Delivery by Thu, 19 Nov
14,00 €   shipping cost
Sent from Greece
From Lampa-shop 4.8 (27)
Greece
8 pieces
See Electrical Panel Supplies on the page of Lampa-shop

Learn more about invoicing

Reviews (4)

Reviews

  1. 4
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product

Description & Specifications

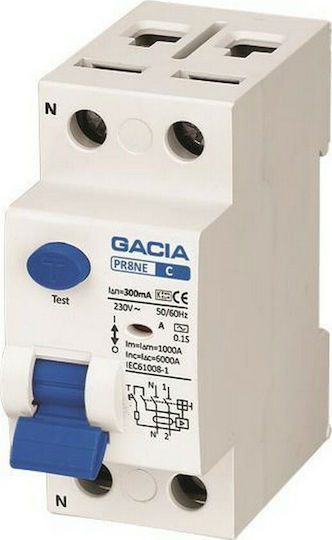

The Gacia 500-37520 two-pole residual current relay is designed for installation on a DIN rail and operates at a supply voltage of 230 V and a frequency of 50/60 Hz. It has a rated current of 25 A, a residual current rating of 300 mA and residual current type A, with electronic protection.

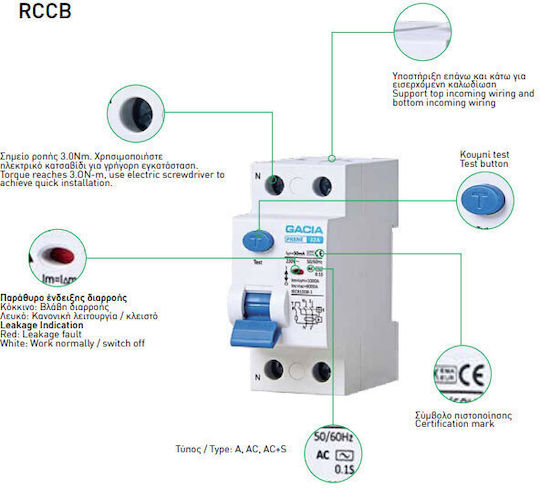

Its short-circuit breaking capacity is 6 kA. It can be connected using a cable or L- and U-type copper busbars, and features a fault indicator.

  • Type: Residual current relay
  • Supply voltage: 230 V
  • Operating frequency: 50/60 Hz
  • Rated current: 25 A
  • Number of poles: 2
  • Residual current rating: 300 mA
  • Residual current relay type: A
  • Residual current protection type: Electronic
  • Breaking capacity: 6 kA
  • Ingress protection rating: IP20
  • Operating temperature: -25 °C to +50 °C
  • Material: Polyamide
  • Colour: White
  • Height: 81 mm
  • Width: 36 mm
  • Length: 74 mm
  • Net weight: 0.17 kg
  • Cable cross-section: 4 mm
  • Copper busbar: 16 mm
  • Mechanical operations: 4000
  • Electrical operations: 2000
  • Certification: IEC61008-1
  • Certificates: Yes
  • CE marking: Yes
  • Fault indicator: Yes

Manufacturer

Type
Earth Leakage
Number of Poles
2
Voltage
230 V
Nominal Voltage
25 A
Leakage Current
300 mA
with Energy Consumption Meter
No
with Timer
No
Type of Residual Current Relay
Type A

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
