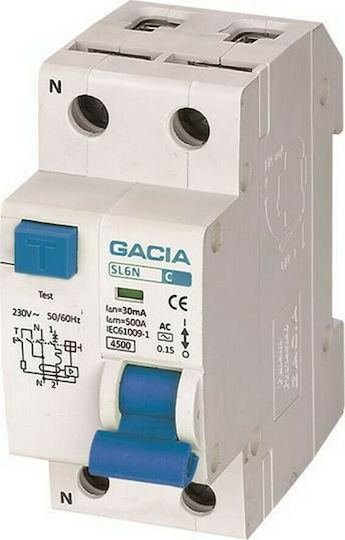

The Gacia 1P+N residual current circuit breaker is double-pole and operates at 230 V with a rated current of 32 A. It has AC-type residual current protection, a leakage current of 30 mA and a breaking capacity of 4.5 kA. Residual current protection is electronic.
- Type: AC
- Poles: 2 (1P+N)
- Operating voltage: 230 V
- Rated current: 32 A
- Leakage current: 30 mA
- Breaking capacity: 4.5 kA
- Operating frequency: 50/60 Hz
- Ingress protection rating: IP20
- Operating temperature: -25 °C to +50 °C
- Colour: White
- Construction material: Polyamide
- Weight: 0.180 kg
- Height: 80 mm
- Width: 35 mm
- Length: 75 mm
- Cable cross-section: 6 mm
- Copper busbar: 16 mm
- Contact position indicator: Yes
- Operating cycles: 10,000 mechanical and 4,000 electrical
- Curve: C
- Terminal connection type: Cable, L- and U-type copper busbar
- Certification: IEC/EN 61009-1
- CE marking: Yes
- Type
- Earth Leakage
- Number of Poles
- 2
- Voltage
- 230 V
- Nominal Voltage
- 32 A
- Leakage Current
- 30 mA
- with Energy Consumption Meter
- No
- with Timer
- No
- Type of Residual Current Relay
- Type AC
