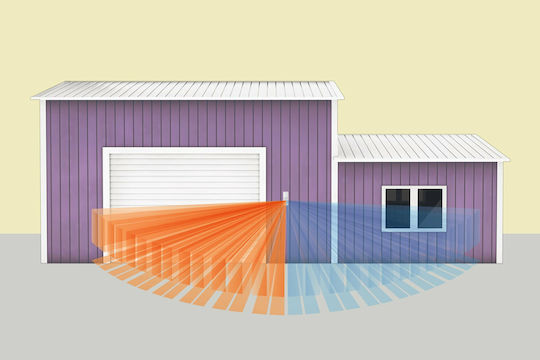

The Optex WXI-ST wired motion sensor detects infrared motion at a 180° angle and a range of 12 m. Coverage is divided into two 90° areas, each with separate range and sensitivity adjustments. The 12 dual pyroelectric elements form 12 coverage zones, while SMDA logic helps prevent false alarms.
The sensor is wall-mounted at a height of 0.8–1.2 m and features two alarm outputs, one for each area, as well as a Back Tamper contact.
- Detection type: Infrared
- Detection angle: 180°
- Range: 12 m
- Coverage zones: 12
- Range and sensitivity adjustment: Separate for each 90° area
- Detection speed: 0.3–2 m/sec
- Sensitivity: 2ºC @ 0.6 m/sec
- Detection logic: SMDA
- Alarm outputs: 2
- Output contacts: NO/NC
- Power supply: 9.5–18 VDC
- Power consumption: 21 mA
- Protection rating: IP55
- Tamper contact: Back Tamper
- Operating temperature: -30°C to +60°C
- Installation height: 0.8–1.2 m
- Dimensions: 81.5 × 200 × 81.2 mm
Specifications
- Detection Type
- Infrared
- Detection Angle
- 180 °
- Protection Certification
- IP55
- Scope
- 12 m
- Connector
- Wired
- Battery
- No
Additional Features
- Antimasking
- No
- Tamper
- Yes
- Curtain
- No
- Placement
- Wall
- Recessed
- No
- PET
- No
- Built-in Camera
- No
