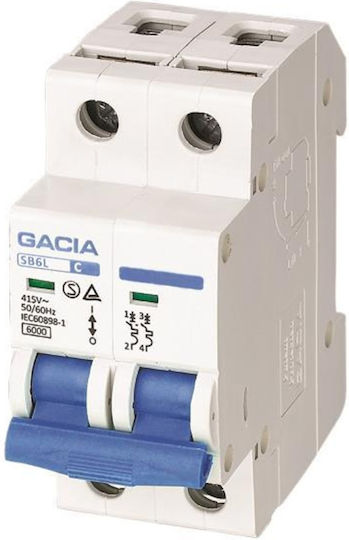

Gacia Automatic Circuit Breaker 40A Double-pole AC 500-43016
Automatic Circuit Breaker

Gacia Automatic Circuit Breaker 40A Double-pole AC 500-43016

Key features:

  • Bipolar
  • Rated Current: 40A
  • Short Circuit Breaking: 6kA
See Description & Specifications
5 41 €
Delivery by Thu, 12 Nov
14,00 €   shipping cost
Sent from Greece
From Lampa-shop 4.8 (27)
4.8 (27 reviews)
Greece
20+ pieces
See Electrical Panel Supplies on the page of Lampa-shop

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing

Reviews (3)

Reviews

5.0
3
5.0
Review this product
  1. 3
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
Product report

Description & Specifications

The Gacia 500-43016 circuit breaker interrupts the circuit when the current exceeds its rated current of 40 A. It has a two-pole configuration, a C tripping curve, and a breaking capacity of 6 kA.

  • Type: Circuit breaker
  • Poles: 2
  • Rated current: 40 A
  • Current type: AC
  • Tripping curve: C
  • Breaking capacity: 6 kA
  • Supply voltage: 230 V
  • Operating frequency: 50/60 Hz
  • Ingress protection rating: IP20
  • Operating temperature: -25 °C to +50 °C
  • Construction material: Polyamide
  • Colour: White
  • Cable cross-section: 10 mm
  • Terminal connection: Cable and L- and U-type copper busbar
  • Copper busbar: 16 mm
  • Contact position indicator: Yes
  • Mechanical operations: 10,000
  • Electrical operations: 4,000
  • Certification: IEC/EN 60898-1
  • CE marking: Yes
  • Dimensions: 83 × 67 × 35 mm
  • Weight: 0.2 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
2
Rated Current
40 A
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
Yes
DC
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
