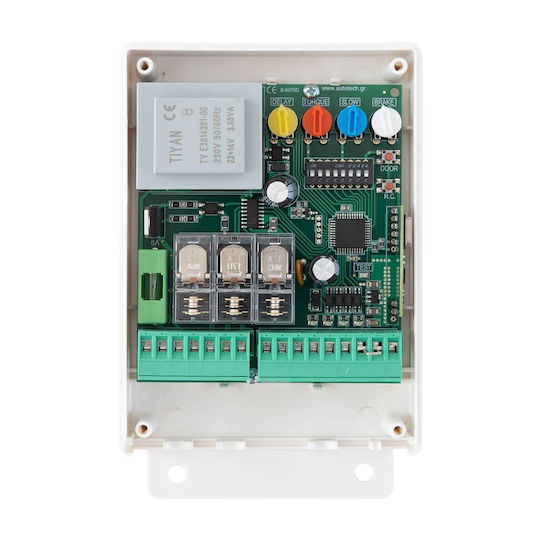

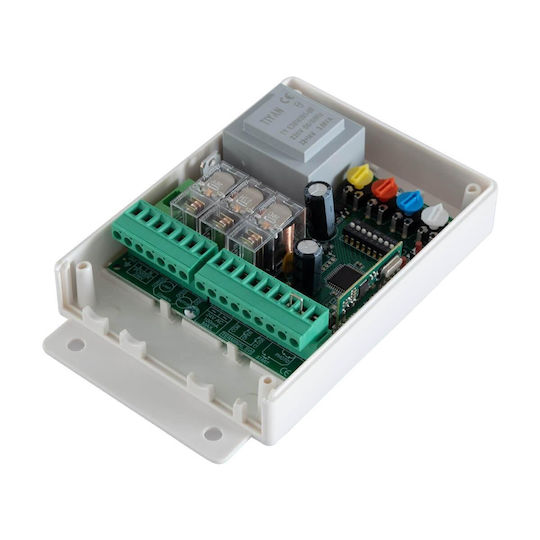

The Autotech S5070D control panel for sliding gates features a built-in 433.93 MHz PLL receiver, with capacity to register up to 100 rolling-code remote controls. It allows adjustment of motor torque, slow speed and automatic closing, and supports partial opening via remote control.

Its inputs support automatic opening via a magnetic loop, infrared sensor or push button, as well as the connection of safety devices, photocells and a pressure switch. Travel time can be easily learned, while diagnostic LED indicators on all inputs help installers check the system’s functions.

• Coding: Rolling code
• Power supply: Single-phase
• Frequency: 433.93 MHz PLL
• Memory capacity: Up to 100 remote controls
• Motor settings: Torque and slow speed
• Automatic closing: Adjustable function
• Partial opening: Via remote control
• Automatic opening inputs: Magnetic loop, infrared sensor and push button
• Safety inputs: Photocells and pressure switch
• Diagnostic indicators: LEDs on all inputs
• Enclosure dimensions: 130 × 85 × 40 mm
• PCB dimensions: 100 × 85 mm
