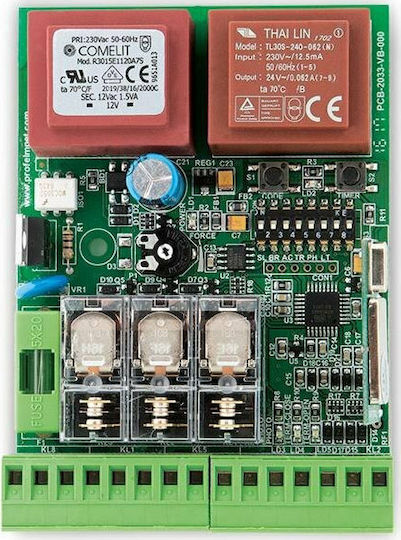

The Profelmnet PS-3033 control panel is designed to automate sliding door motors with a power rating of up to 1200 W. It operates with fixed-code encoding at 433.92 MHz and can store up to 300 remote controls using the same fixed code.
It offers force settings for the motor’s normal and slow operation, brake selection and automatic direction reversal. It supports slow movement during closing, dual automatic closing and travel time adjustment in one-second increments. It includes outputs for an external push button and photocells, as well as a connection for a 230 VAC warning light with flashing or steady-light operation.
- Power supply: Single-phase, 110/230 VAC
- Power rating: Up to 1200 W
- Frequency: 433.92 MHz
- Encoding: Fixed code
- Remote controls: Up to 300 using the same fixed code
- Relay: Spark-free
- Limit switches: Separate for the motor
- Indicators: LED for each activated function
- Force adjustment: For the motor’s normal and slow operation
- Travel time: Adjustable in one-second increments, from 1 to 180 seconds
- Photocell output: With a separate 24 VAC power supply
- Warning light output: 230 VAC, flashing or steady light up to 25 W for 3 minutes
- Interference filters: Yes
- Operating temperature: From -20 °C to 60 °C
- Enclosure: Sealed ABS plastic
- Enclosure dimensions: 111 × 82 × 30 mm
- Power
- 1200 W
- Power Source
- Single-Phase (220V)
- Frequency
- 433.92 MHz
- Wi-Fi
- No
