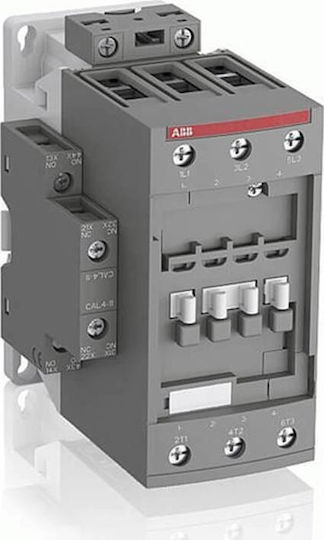

ABB Power Relay 3P 22kW 100-250V AC/DC AF52-30-11-13 72399

With AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), handles large fluctuations in the control voltage, reduces the power consumption of the panel, and ensures discrete operations in unstable networks.

Advantages:

• The surge protection is built-in, offering a compact solution.
• The AF contacts have a block-type design that can easily be extended with additional auxiliary contact blocks and a wide range of accessories.
• Used for controlling three-phase motors, power switching circuits up to 690V AC and 220V DC.
• With screw terminals.

Features:

• Number of Main Contacts: 3NO
• Number of Auxiliary Contacts: 1NC
• Rated Control Circuit Voltage AC (Uc): 100...250V
• Rated Control Circuit Voltage DC (Uc): 100 ... 250V
• Rated Operational Current AC-1 (Ie): 100A (690V)
• Rated Operational Current AC-3 (Ie): 53A (220 - 440V)
• Rated Impulse Voltage withstand (Uimp): 8kV
• Rated Operational Power AC-3 (Pe): 220 / 230 / 240 V: 15 kW, 380 / 400V: 22 kW, 415 / 690V: 30kW
• Wire Stripping Length: Auxiliary circuit 10 mm, Control circuit 10 mm, Main circuit 16 mm
• Dimensions: Width: 67mm, Depth: 111mm, Height: 125.5mm
