I bought this filter for the village so we can have clean water without constantly needing to buy bottled water. Since I couldn't find any instructions in the box either, and probably many might have questions about the installation, I will leave an informal "instruction manual" in case it helps someone in the future.

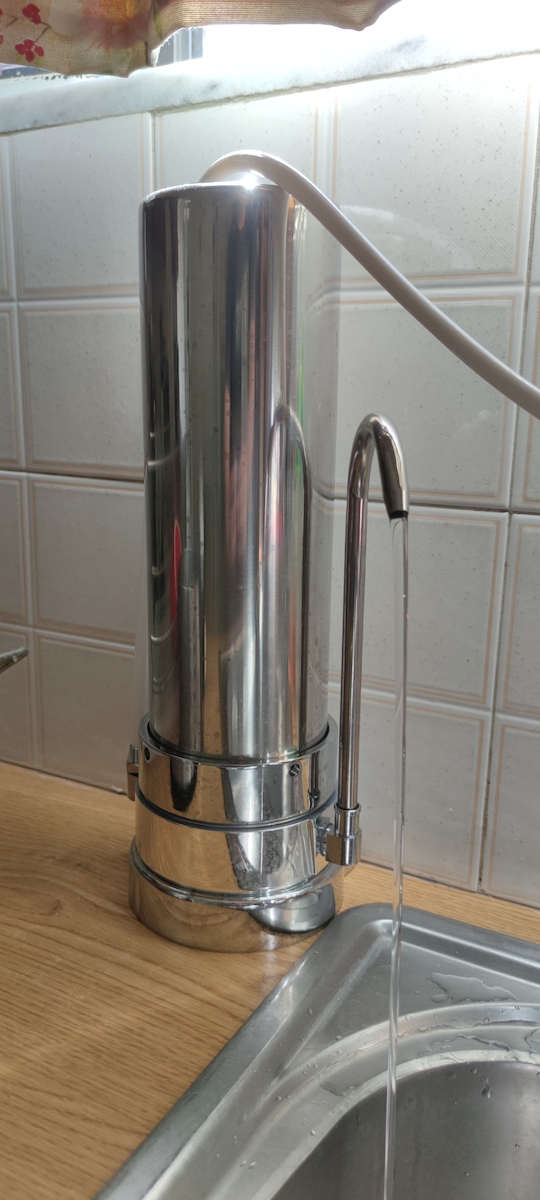

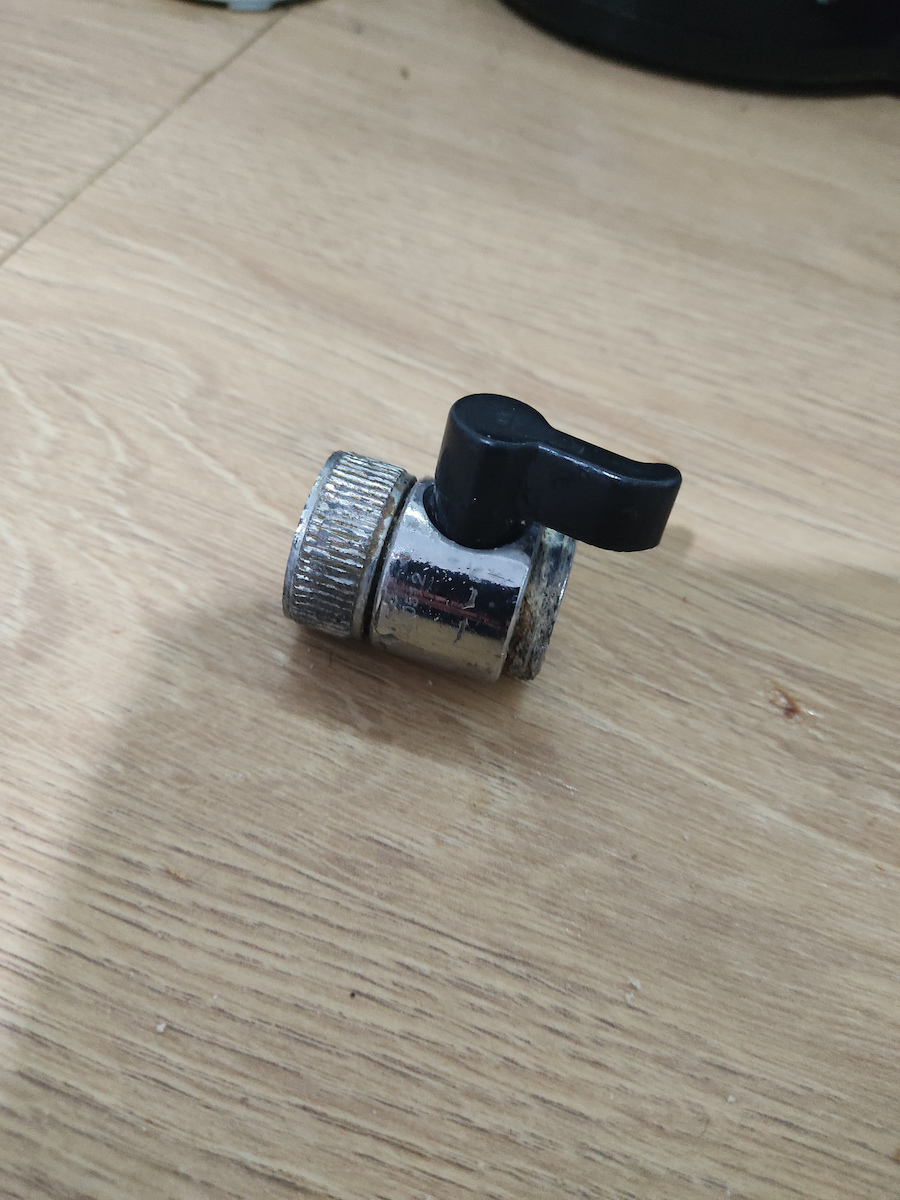

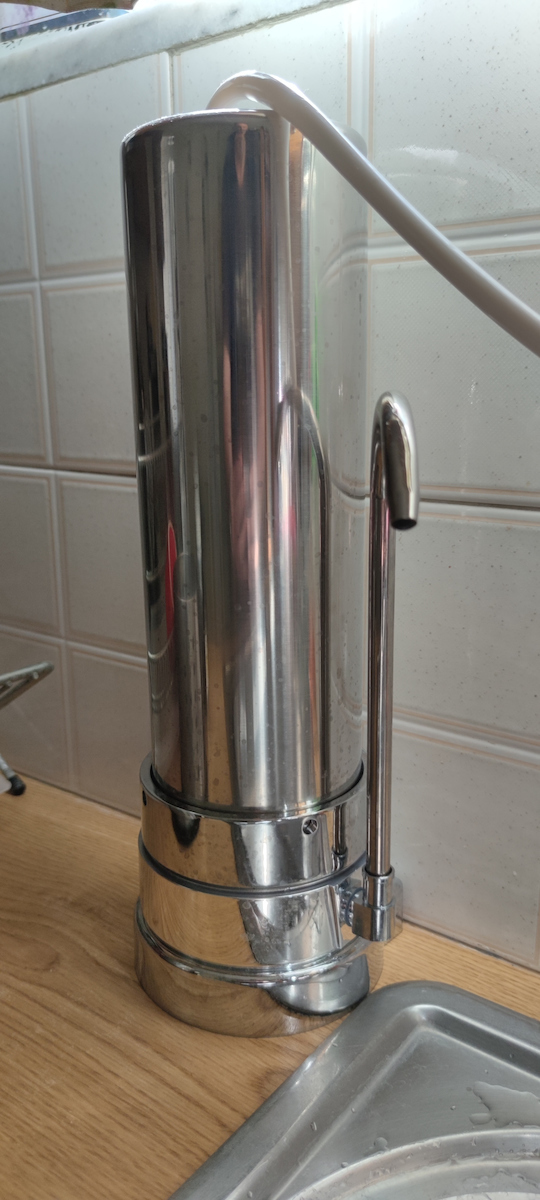

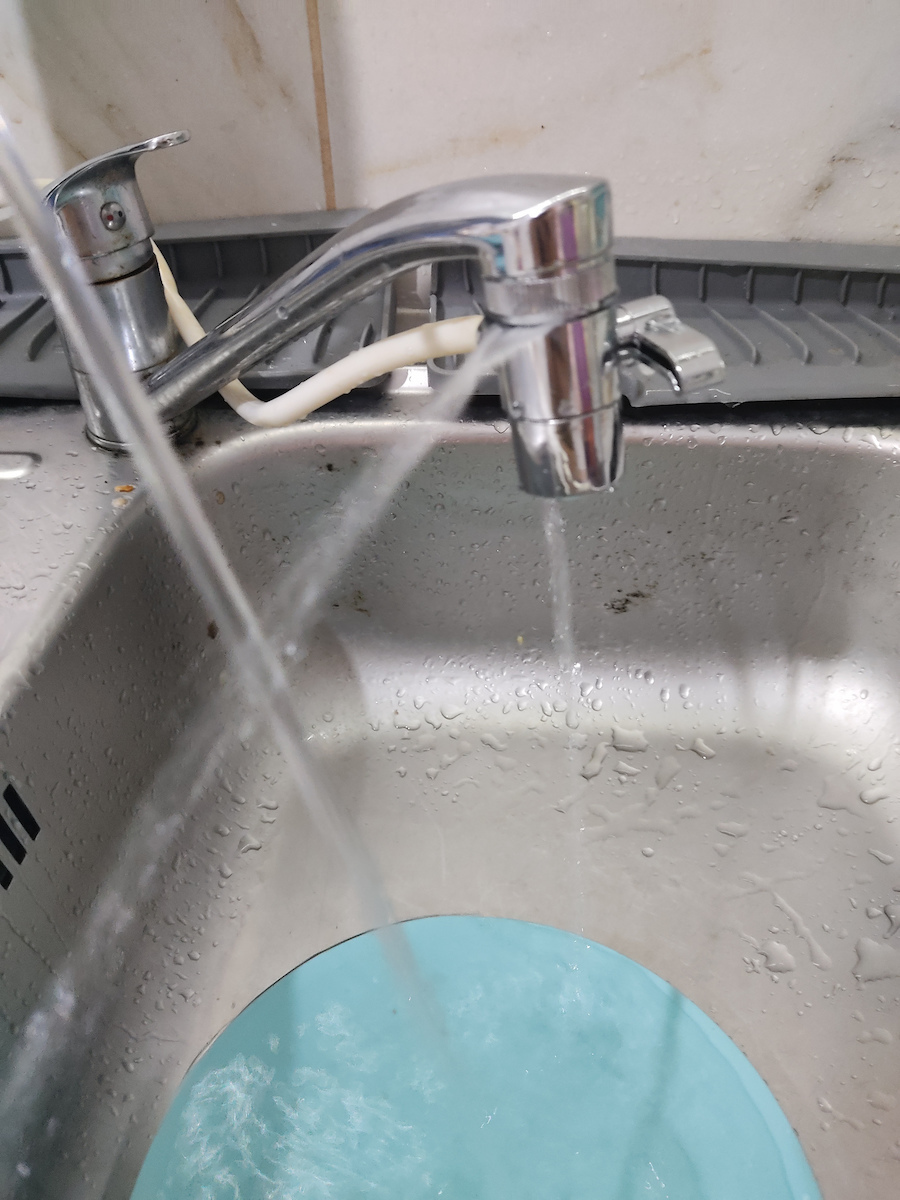

1. To open it, hold the lid and unscrew the one with the holes to remove it. 2. The filter, as far as I understand, can be inserted either way; it doesn't have a top or bottom, it just goes into the center of the plastic inside (don't forget to remove the plastic wrap). 3. We put the lid back on, and to screw it on, hold from the top and while pressing down, start screwing with your hand and finish with the special tool until it tightens enough (otherwise, it will drip) as shown in the photo. 4. For the connection to the faucet, I put the washers (black rubber rings); I placed one between the faucet and the adapter it has, and another from the adapter to the small valve that comes in the box. (The arrows in the photo) 5. To attach the hose to the valve, unscrew it completely, pass the hose through the "hook," place the hose in the socket, and then screw it back on. You may need a tool (like a wrench) to tighten it well.
Extra:

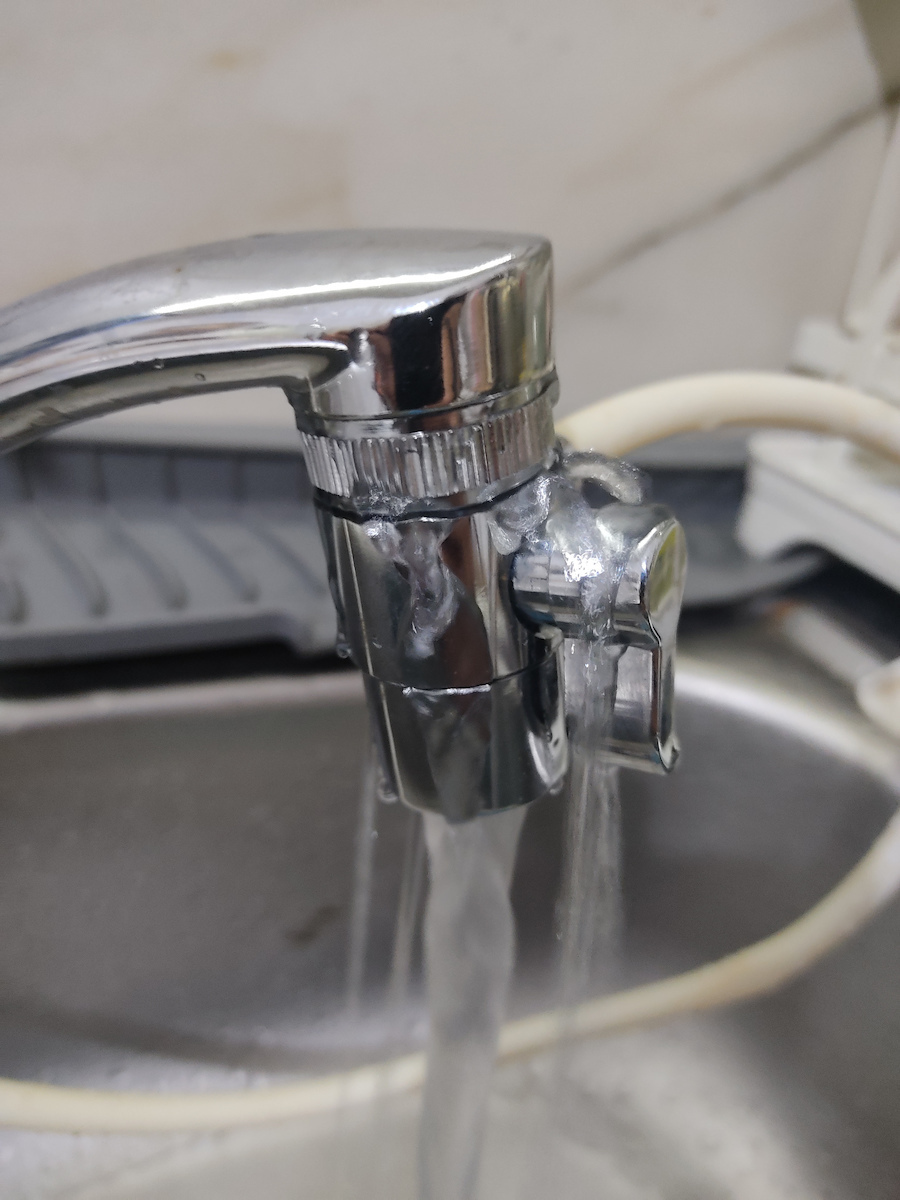

1. First, I apologize for the terminology and descriptions; I am not a great expert, and I hope you can understand. 2. The pressure is very good and responds immediately when you turn on the faucet (only on the first use it takes a little time to fill). 3. At first, it dripped for me too, but after reading the comments, I saw that you need to push it down as I mentioned earlier. 4. Before connecting the hose, position it in the direction you want so that it doesn't obstruct too much (turn it a little so that it "twists" towards the wall). 5. At the connection of the adapter with the faucet, it drips a little when I turn on the faucet with high pressure, but this is not a big problem (since it falls in the same spot and doesn't drip when the faucet is closed). Maybe a little tightening will fix it. 6. Generally, I haven't tested it enough to have a good understanding of the problems, but it seems to have potential. It is quite large in size, but personally, it doesn't bother me. I don't know how long it will last over time. 7. I don't know how often the filter needs to be changed, but according to comments, it should be changed once a year (I assume with daily use). In my case, since it is in the village, it might last a little longer. The replacement is quite cheap (27-30 euros from what I see).
Αγόρασα το φίλτρο αυτό για το χωριό για να έχουμε καθαρό νερό χωρίς να χρειάζεται να αγοράζουμε συνεχώς εμφιαλωμένο. Με την αφορμή του ότι δεν βρήκα ούτε εγώ οδηγίες στο κουτί και πιθανότατα πολλοί μπορεί να έχουν απορίες για την εγκατάσταση θα αφήσω ένα άτυπο "εγχειρίδιο οδηγιών" μήπως βοηθήσει κάποιον μελλοντικά.
1. Για να το ανοίξεις κρατάς το καπάκι και ξεβιδωνεις αυτό με τις τρύπες για να βγεί. 2. Το φίλτρο αν έχω καταλάβει καλά μπαίνει και με τις 2 φορές, δεν έχει πάνω ή κάτω, μπαίνει απλά στο κέντρο του πλαστικού στο εσωτερικό (μην ξεχάσεις να βγάλεις την ζελατίνα).
3. Βάζουμε πίσω το καπάκι και για να το βιδωσεις κρατάς από πάνω και ενώ πιέζεις προς τα κάτω, βιδωνεις στην αρχή με το χέρι και στο τέλος με το ειδικό εργαλείο μέχρι να σφίξει αρκετά (αλλιώς θα στάζει) όπως στην φωτογραφία.
4. Για την ένωση με την βρύση εγώ έβαλα τις φλατσες (μαύρα λαστιχακια) εγώ έβαλα 1 ανάμεσα στην βρύση και τον ανταπτορα που έχει, και άλλο ένα από τον ανταπτορα με την μικρή βανα που έχει το κουτί. (Τα βελάκια στην φωτογραφία)
5. Για να βάλεις το λάστιχο στην βανα, το ξεβιδωνεις τελείως περνάς το λάστιχο μέσα από το "κρικακι" , βάζεις το λάστιχο στην υποδοχή και μετά το ξαναβιδωνεις. Μπορεί να χρειαστεί εργαλείο(πχ κλειδί/κάβουρας) για να το σφίξεις καλά.
Έξτρα:
1. Αρχικά ζητάω συγνώμη για τις ορολογίες και τις περιγραφές δεν είμαι μεγάλος γνώστης ελπίζω να μπορείτε να καταλάβετε.
2. Η πίεση είναι πολύ καλή και ανταποκρίνεται άμεσα όταν ανοίγεις την βρύση (μόνο στην 1η χρήση θέλει λίγο χρόνο για να γεμίσει)
3. Στην αρχή μου έσταζε και εμένα αλλά αφού διάβασα τα σχόλια είδα ότι πρέπει να το πιέσεις προς τα κάτω όπως αναφέρω και προηγουμένως.
4. Πριν συνδέσεις το λάστιχο, βάλτο στην φόρα που θες ώστε να μην εμποδίζει πολύ (γυρνά το λίγο ώστε να "στρίβει" προς τον τοίχο)
5. Στην ένωση του ανταπτορα με την βρύση εμένα στάζει λίγο όταν ανοίγω την βρύση με μεγάλη πίεση αλλά δεν είναι μεγάλο πρόβλημα αυτό (μιας και πέφτει στο ίδιο σημείο και δεν στάζει όταν είναι κλειστή η βρύση). Ίσως με λίγο σφίξιμο να φτιάξει.
6. Γενικά δεν το έχω δοκιμάσει αρκετά για να έχω καλή γνώση των προβλημάτων αλλά φαίνεται να έχει προοπτικές. Είναι αρκετά μεγάλο σε μέγεθος αλλά προσωπικά δεν με ενοχλεί. Δεν γνωρίζω πόσο θα αντέξει σε θέμα χρόνου.
7. Το φίλτρο δεν ξέρω κάθε πότε θέλει αλλαγή αλλά σύμφωνα με σχόλια είναι να το αλλάζουμε μια φορά τον χρόνο (υποθέτω με καθημερινή χρήση). Στην περίπτωση μου που είναι στο χωριό ίσως να αντέχει και λίγο παραπάνω. Το ανταλλακτικό είναι αρκετά φθηνό (27-30 ευρώ αποτι βλέπω).
