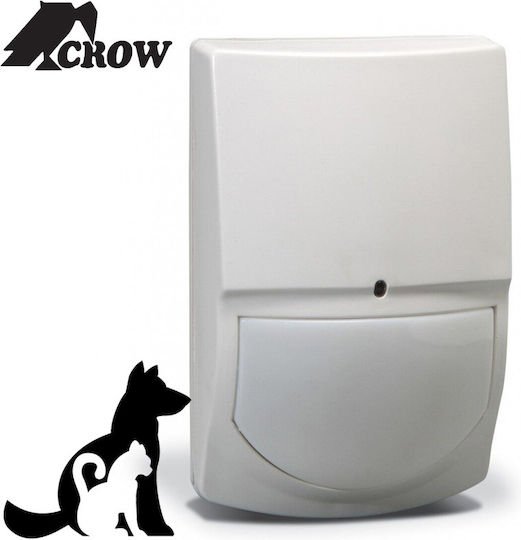

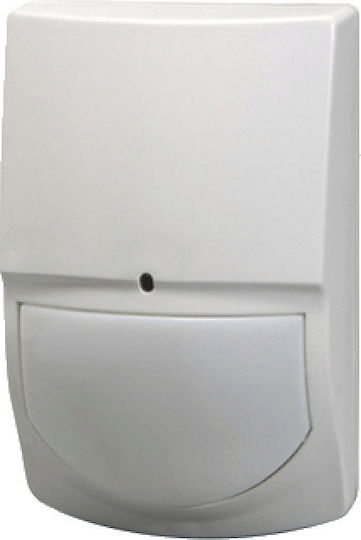

The Crow Quad Swan PET wired motion sensor detects infrared radiation using a Quad Linear Imaging Technology quad pyroelectric element and an Asic processor. It provides 90° coverage and a range of up to 18 m with the standard wide-angle lens. The PET function allows small animals weighing up to 15 or 25 kg to be ignored, with a selectable weight limit.
The sensor features bidirectional temperature compensation and a pulse counter selectable between 1 or 3 pulses. Infrared sensitivity can be adjusted from 15% to 100% using a potentiometer.
- Detection type: Infrared
- Connection: Wired
- Mounting: Wall-mounted
- Detection angle: 90°
- Range: 18 m
- PET immunity: Ignores small animals weighing up to 15 or 25 kg, with a selectable weight limit
- Detection element: Quad Linear Imaging Technology quad pyroelectric element
- Processor: Asic
- Temperature compensation: Bidirectional
- Pulse counter: Selectable between 1 or 3 pulses
- Infrared sensitivity adjustment: From 15% to 100% using a potentiometer
Specifications
- Detection Type
- Infrared
- Detection Angle
- 90 °
- Scope
- 18 m
- Connector
- Wired
- Battery
- No
Additional Features
- Antimasking
- No
- Tamper
- No
- Curtain
- No
- Placement
- Wall
- Recessed
- No
- PET
- Yes
- Built-in Camera
- No
