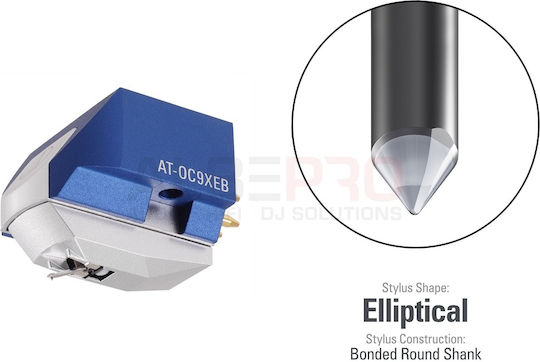

The Audio-Technica AT-OC9XEB phono cartridge uses a moving coil and features an elliptical bonded round shank stylus. Its body is made of aluminum, as is the shank tube, and the coils use PCOCC wire.
- Type: Moving coil
- Mounting: Standard 1/2″, with threaded inserts

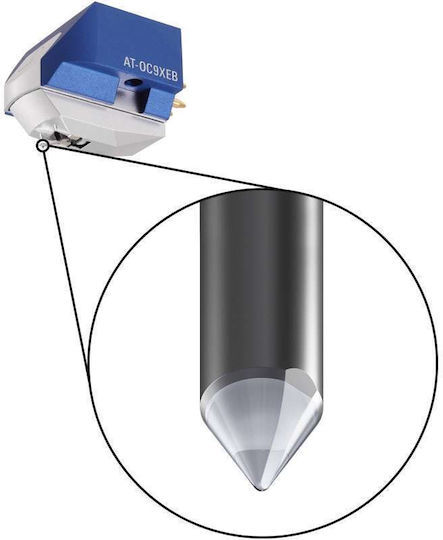

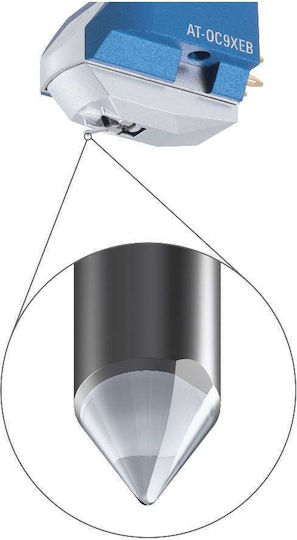

- Stylus: Elliptical, bonded
- Stylus size: 0.3 × 0.7 mil
- Frequency response: 20–30,000 Hz
- Channel separation: 25 dB (1 kHz)
- Output channel balance: 1.5 dB (1 kHz)
- Output voltage: 0.32 mV (1 kHz, 5 cm/s)
- Recommended load impedance: At least 100 ohms
- Coil impedance: 12 ohms (1 kHz)
- DC resistance: 12 ohms
- Coil inductance: 25 μH (1 kHz)
- Vertical tracking angle: 20°
- Static compliance: 20 × 10⁻⁶ cm/dyne
- Dynamic compliance: 9 × 10⁻⁶ cm/dyne (100 Hz)
- Terminals: Brass
- Dimensions: 17.3 × 16.8 × 25.7 mm (H × W × L)
- Weight: 7.6 g

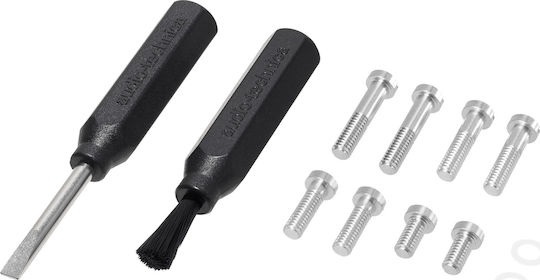

- Package contents: Non-magnetic screwdriver, brush, 2 washers, 4 pairs of mounting screws (5 mm, 8 mm, 10 mm, and 12 mm), plastic stylus guard
- Type
- Moving Coil
- Packaging
- Piece
- Mounting Type
- Standard 1/2"
