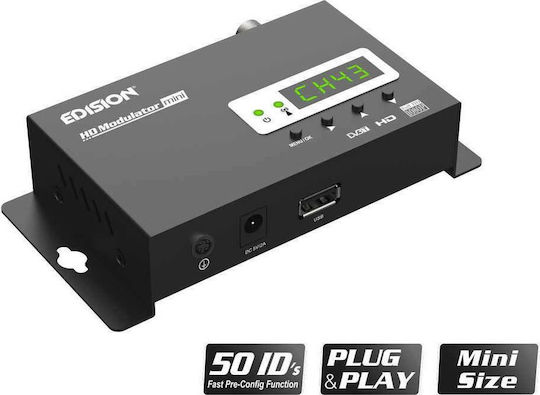

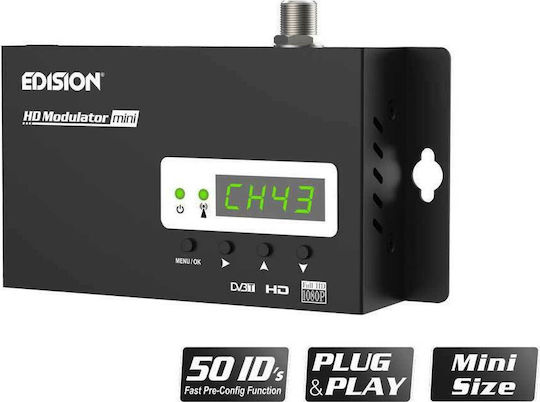

The Edision HDMI Mini modulator converts a signal from an HDMI source into a terrestrial digital DVB-T/MPEG4 signal in the VHF and UHF bands. It supports resolutions up to 1080p at 30 fps and features an HDMI v1.4a input. The FAST PRE-CONFIG function provides 50 preset, selectable IDs for configuring the modulator.

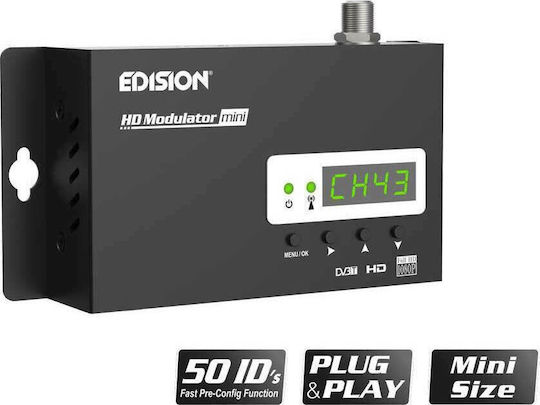

Settings can be saved to a USB drive and transferred back to the device, while software updates are performed via USB. The four-digit LED display and four buttons are used to operate the device.
- Type: Digital single-channel HDMI to DVB-T/MPEG4 modulator
- Signal input: HDMI
- Signal output: Terrestrial digital DVB-T/MPEG4
- Video resolution: Up to 1080p at 30 fps
- Aspect ratio: 16:9 widescreen, 4:3 letterbox, 4:3 pan scan
- Frequency range: VHF (CH. 5-12) and UHF (CH. 21-69)
- RF output level: Factory setting of 90 dBμV, adjustable up to +6 dBμV or down to -14 dBμV
- MER: >35 dB at maximum output level
- Symbol rate: Up to 31.668 Mbps
- Bandwidth: 7 MHz, 8 MHz
- Video encoding: MPEG1, MPEG2 MP@HL, MPEG4 SP@L3 up to ASP@L5, MPEG4 AVC HP @level4.1, [email protected]
- Audio encoding: MPEGI L1/2, MPEGII LII, AAC LC, HE-AAC v1/v2 (2-CH)
- Processor: 200 MHz CPU, 32-bit RISC
- Memory: Built-in DDRII 16-bit 512 Mbits and NOR Flash 32 Mbit

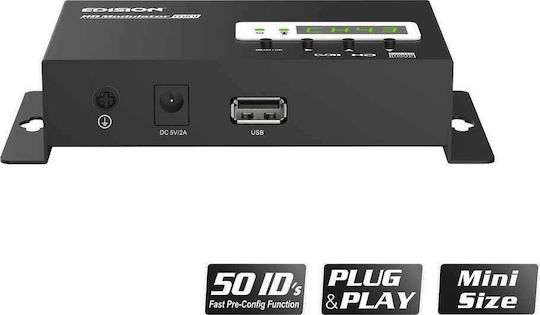

- Ports and connectors: HDMI, RF, USB, DC 5 V, grounding
- USB: USB 2.0 HOST
- Display: Four-digit LED
- Buttons: 4

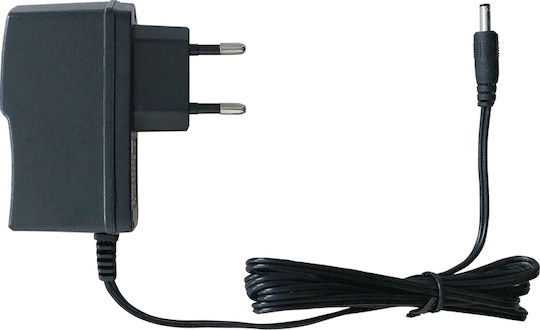

- Power supply: Input 100–240 V AC, output DC 5 V/2.0 A
- Power consumption: Up to 10 W in normal operation
- Dimensions: 132 × 84 × 31 mm
- Weight: 0.35 kg
- Colour: Black

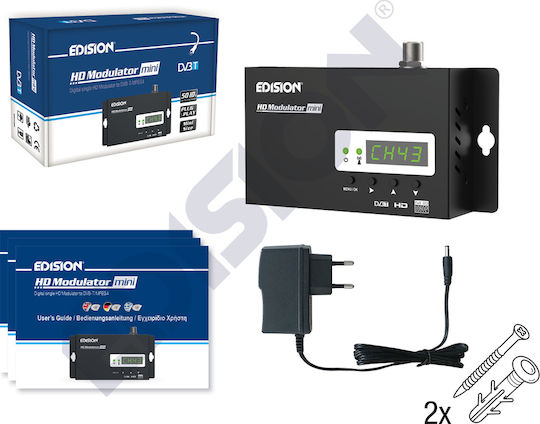

- Package contents: HDMI Mini modulator, 5 V/2.0 A power supply, mounting screws, user manual EN/DE/GR/ES/IT/FR
- Type
- Modulator
