A22 Integrated PA Amplifier 2 Channels 55W/8Ω Equipped with USB/FM/Bluetooth Black

The Adastra A22 stereo PA amplifier combines Class-D amplification with built-in media playback. It delivers up to 2 x 55 W at 4 Ω and up to 2 x 40 W at 8 Ω, while the microphone input with separate...

The Adastra A22 stereo PA amplifier combines Class-D amplification with built-in media playback. It delivers up to 2 x 55 W at 4 Ω and up to 2 x 40 W at 8 Ω, while the microphone input with separate volume control is ideal for announcements and alerts.

Playback supports MP3 files from USB or microSD, FM radio and Bluetooth. Functions can be controlled from...

See full description See full description
92 73 €
Delivery by Thu, 12 Nov
14,00 €   shipping cost
Sent from Greece
From Technosound 5.0 (45)

Learn more about invoicing

Description

Description

The Adastra A22 stereo PA amplifier combines Class-D amplification with built-in media playback. It delivers up to 2 x 55 W at 4 Ω and up to 2 x 40 W at 8 Ω, while the microphone input with separate volume control is ideal for announcements and alerts.

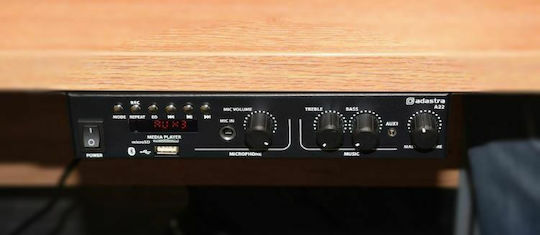

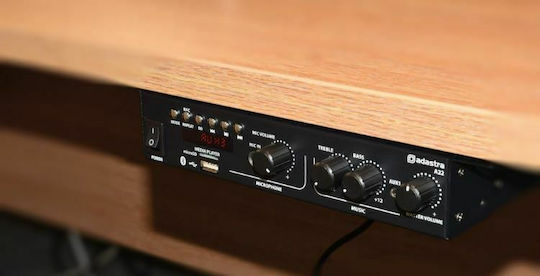

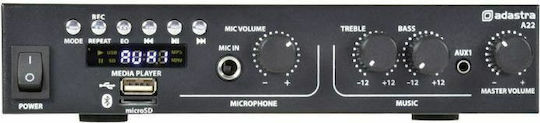

Playback supports MP3 files from USB or microSD, FM radio and Bluetooth. Functions can be controlled from the front panel or with the included infrared remote control. Four rotating mounting brackets allow installation under a counter or on a wall, while two units can be mounted side by side in 1U of rack space.

  • Type: Integrated stereo PA amplifier
  • Amplification technology: Class-D
  • Channels: 2
  • Output power at 8 Ω: 2 x 25 W RMS, 2 x 40 W maximum
  • Output power at 4 Ω: 2 x 35 W RMS, 2 x 55 W maximum
  • Output impedance: 4–8 Ω per channel
  • Line inputs: 1 x 3.5 mm and 2 x stereo RCA
  • Microphone input: 6.3 mm
  • Audio sources: USB, microSD, FM and Bluetooth
  • Sound adjustment: Microphone and music volume, treble and bass
  • FM antenna: F-type connection

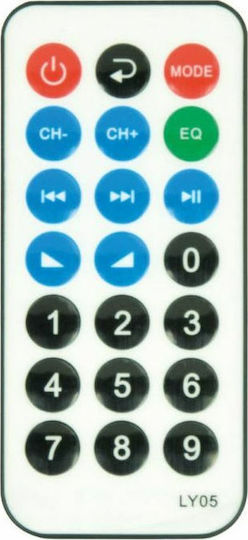

  • Remote control: Infrared, included
  • Mounting brackets: 4 rotating brackets, included
  • Power supply: 230 V AC, 50 Hz
  • Dimensions: 215 x 180 x 43 mm
  • Weight: 820 g

Manufacturer

See full description

Specifications

Specifications

Technical Specifications

Amplifier Type
PA Amplifier
Type
Integrated
Channels
2
Power (8Ω)
55 watt / channel
Class
D

Additional Specifications

Radio
Yes
Cooling system
No

Connectivity

RCA
Yes
XLR
No
Mini Jack (3.5mm)
Yes
Jack (6.3mm)
Yes
USB
Yes
Ethernet
No
Bluetooth
Yes
Mic In
Yes

Dimensions

Width
215 mm
Height
43 mm
Length
180 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
