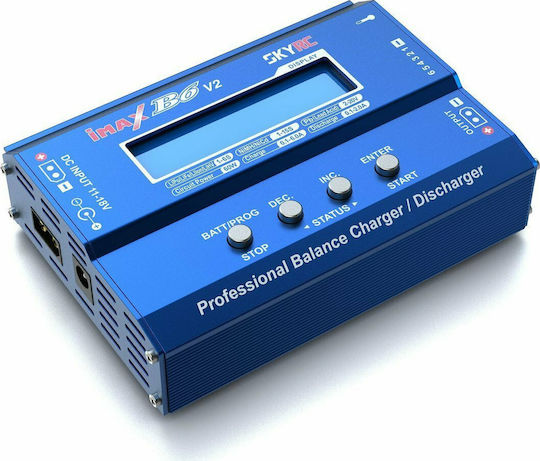

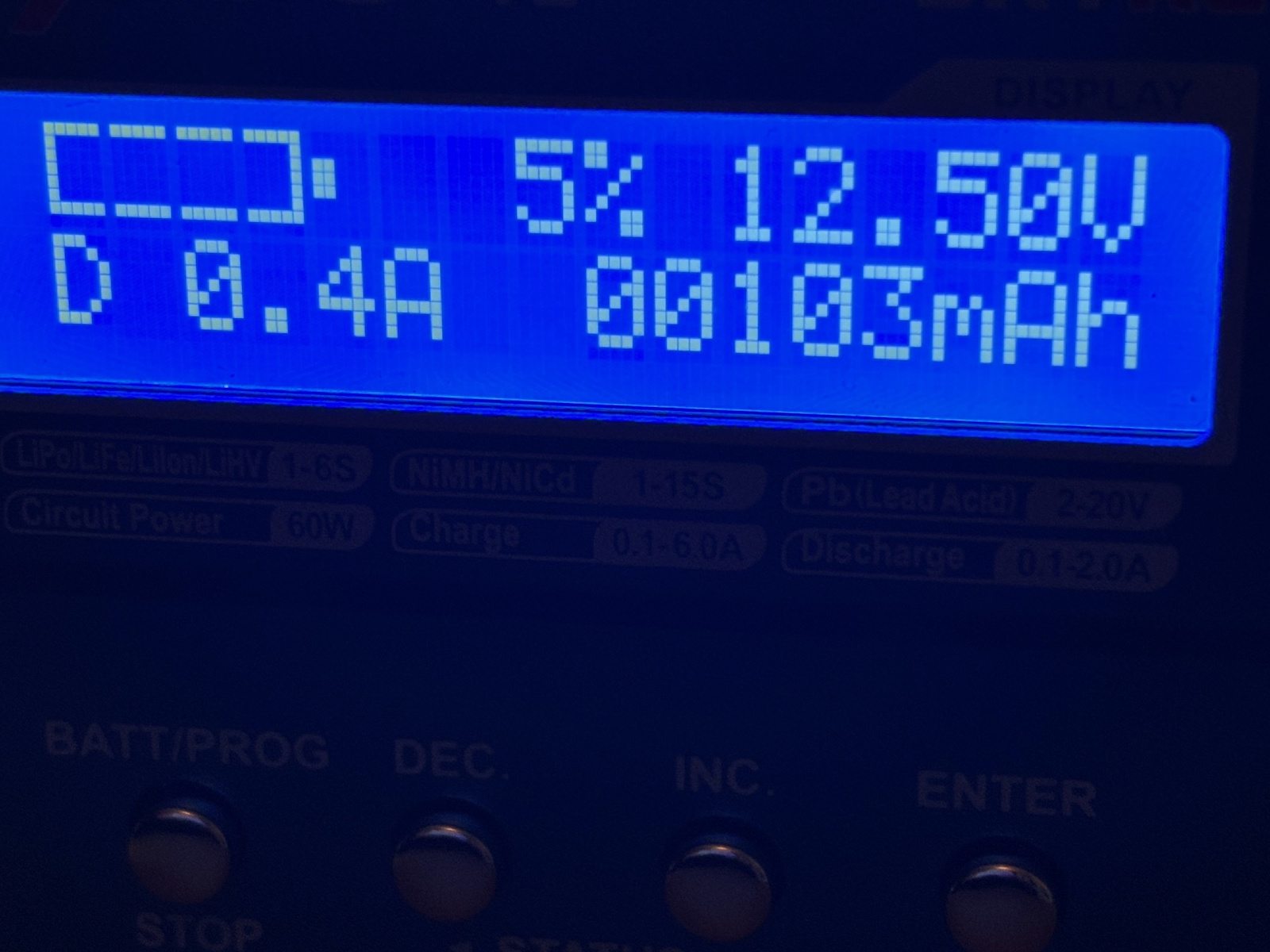

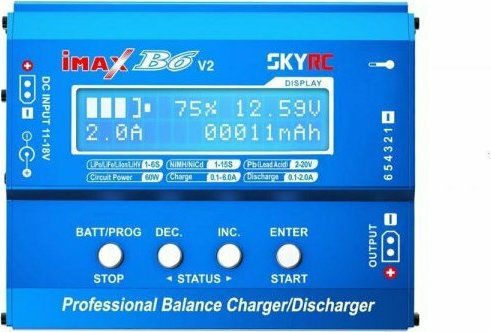

The Skyrc iMax B6 V2 charger supports charging, discharging and adjustable DC power supply operation for LiPo, LiFe, Li-Ion, LiHV, NiMH, NiCd and Pb batteries. The display shows a charging icon and the battery’s charge percentage. It features a 32-bit ARM Cortex-M3 microprocessor and supports charging DJI Mavic and DJI Inspire batteries at up to 4 A.

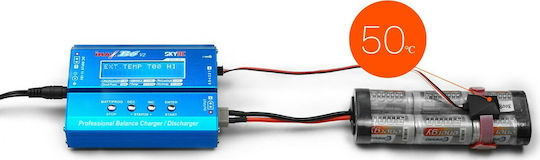

The DC power supply function provides 60 W at 5–26 V and 1–6 A. It also supports charging AGM and lead-acid batteries at low temperatures. Thermal protection stops charging when the battery temperature exceeds the set limit and works with an optional temperature sensor.
- Type: Balance charger
- Compatible battery types: LiPo, LiFe, Li-Ion, LiHV, NiMH, NiCd and Pb
- Maximum charging power: 60 W
- Maximum discharging power: 5 W
- Charging current: 0.1–6 A
- Discharging current: 0.1–1 A
- DC input voltage: 11–18 V
- DC power supply: 5–26 V, 1–6 A, up to 60 W
- Number of LiPo/LiFe/Li-Ion/LiHV cells: 1–6S
- Number of NiMH/NiCd cells: 1–15S
- Pb battery voltage: 2–20 V
- Current consumption per cell: 300 mA
- Dimensions: 115 × 84 × 31 mm
- Weight: 238 g
- Package contents: iMax B6 V2 charger, DC power cable, Dean charging cable, charging cable without connector
- Product Number
- SK-100161-01
- Type
- Balance
