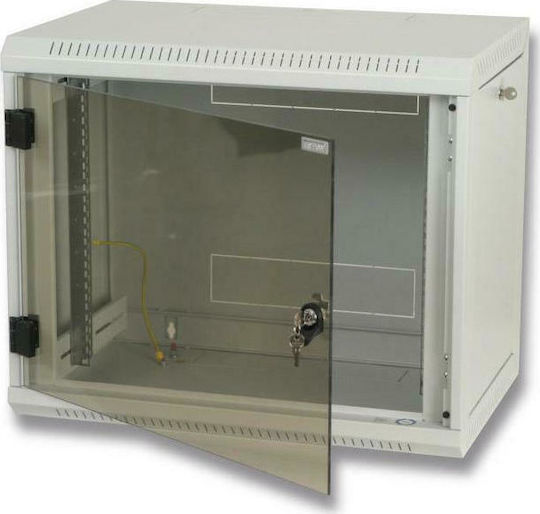

The Triton RUA-06-AS4-CAX-A1 wall-mounted cabinet is a welded, single-section unit with a depth of 400 mm and a capacity of 6U. The 4 mm tempered-glass door opens almost 180°, is removable, and can be reversed. It features a lock, removable side panels, and two pairs of adjustable 19'' vertical rails.

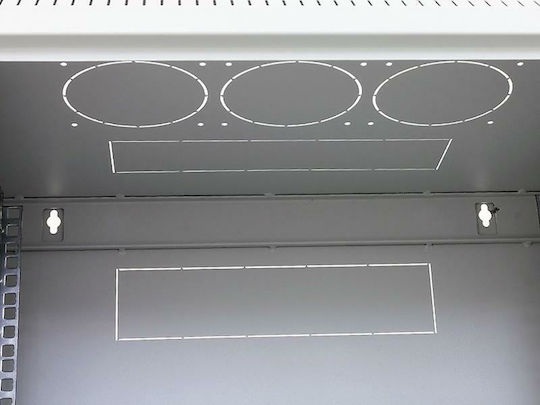

Removable cable-entry panels are located at the top, bottom, and rear. The cabinet has six positions for RAx-CH-X2x-X1 ventilation unit panels or RAX-CH-X07-X9 fans, allowing up to three to be installed at the top and three at the bottom.

• Mounting: Wall-mounted
• Capacity: 6U
• Dimensions: 60 × 37 × 39.5 cm
• Weight: 30 kg
• Color: Grey
• Construction type: Welded, single-section
• Depth: 400 mm
• Maximum load: 30 kg
• Protection rating: IP30
• Door material: Tempered glass
• Glass thickness: 4 mm
• Door opening: Almost 180°
• Adjustable rails: 2 pairs of 19'' vertical rails
• Ventilation positions: 6, up to 3 at the top and 3 at the bottom
• Compatibility: RAx-CH-X2x-X1, RAX-CH-X07-X9
• Package contents: Front door key, 2 6x50 screws, 4 6.6 washers, 4 size 10 wall plugs, 4 M6 locking nuts, 8 brush panels, 1 M6x10 screw, 8 plastic washers, 1 plastic frame (300x70 mm)
