Mistral 4X115-4G Central Amplifier Satellite FM/VHF-UHF-UHF 4 outputs with LTE 5G filter 0244

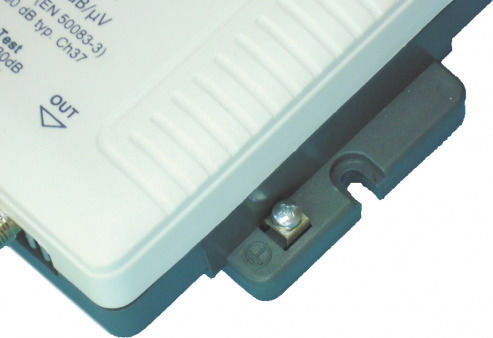

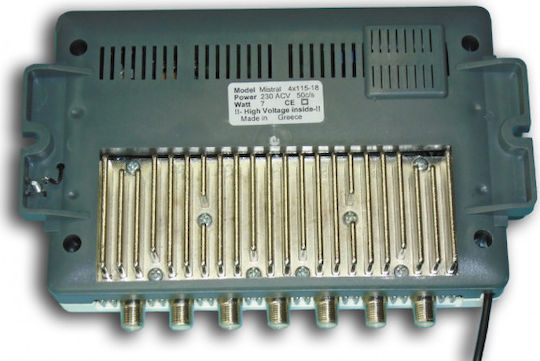

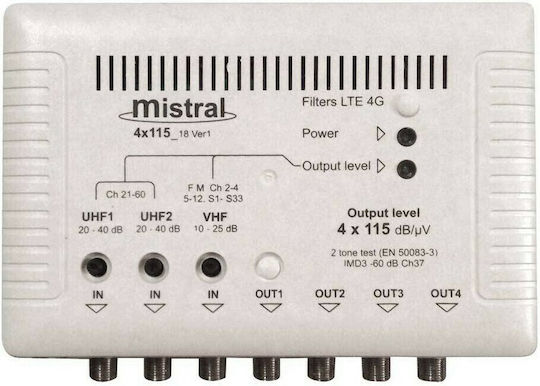

The Mistral 4X115-4G headend amplifier boosts FM, VHF and two UHF bands, with three inputs and four independent outputs. It features a switch-mode power supply housed in a plastic casing, ventilated...

The Mistral 4X115-4G headend amplifier boosts FM, VHF and two UHF bands, with three inputs and four independent outputs. It features a switch-mode power supply housed in a plastic casing, ventilated by louvers at the back. It includes Tetra, 3G, 4G and 5G filters.

  • Type: Headend amplifier
  • Inputs: 3
  • 1st input: Ch 2–4, 5–12 and S1–S33
  • 2nd input: UHF ch 21–48
  • ...
See full description See full description
79 79 €
Delivery by Thu, 19 Nov
14,00 €   shipping cost
Sent from Greece
From Silvernose 4.9 (58)
Greece
1 piece
See Satellite Reception on the page of Silvernose

Learn more about invoicing

Description

Description

The Mistral 4X115-4G headend amplifier boosts FM, VHF and two UHF bands, with three inputs and four independent outputs. It features a switch-mode power supply housed in a plastic casing, ventilated by louvers at the back. It includes Tetra, 3G, 4G and 5G filters.

  • Type: Headend amplifier
  • Inputs: 3
  • 1st input: Ch 2–4, 5–12 and S1–S33
  • 2nd input: UHF ch 21–48
  • 3rd input: UHF ch 21–48
  • Outputs: 4 independent
  • Output level: 115 dB/μV at 40 dB
  • VHF gain: Adjustable, 8–26 dB
  • UHF1 gain: Adjustable, 20–40 dB
  • UHF2 gain: Adjustable, 10–30 dB
  • Filters: Tetra, 3G, 4G and 5G
  • Standard: 2-tone test EN 50083-3 on Ch 37, IMD3 -60 dB
  • Power supply: Switch-mode power supply, 110–240 VAC / 10 VDC
  • Power consumption: 7 W at 230 VAC
  • LED indicators: Operating voltage 10 V and increased VHF-UHF intermodulation
  • Weight: 910 g

Manufacturer

See full description

Specifications

Specifications

Type
Central Amplifier

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (7)

Reviews

  1. 7
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
  • Quality
  • Durability
  • Is it as it appears in the photo?
  • Value for money
  • Αθανάσιος.Καπράλος
    5
    1 out of 1 members found this review helpful

    Verified purchase

    I put 5 even though...

    If you already have a good antenna because you are in a bad signal area (e.g. Televes DAT-75 T-Force 5G LTE HD), the antenna with its own PASSIVE amplifier, i.e. WITHOUT POWER, has a gain of 19db, or if you have a very good antenna with an ACTIVE amplifier and power, IT IS USELESS AND WILL OVERLOAD/DAMAGE THE SIGNAL. The antenna is sufficient with a power supply that provides 40db gain. If you install an amplifier, it should either be set to 0 in terms of gain intensity or a technician should come with a field meter, etc.

    There is a possibility that if you have a Televes DAT-75 T-Force 5G LTE HD antenna, the amplifier may short-circuit the antenna's circuit board and nothing will be visible. In our case, the amplifier worked ONLY after we installed a power supply (Televes Picokom Easy-F 24V 2out Power Supply).

    The first amplifier had psychological issues that were not even noticeable at the MISTRAL factory, even though they are all great and they gave me a new one that worked properly and I informed them.

    Personally, I regret not getting a TELEVES amplifier so that all the components, especially the circuits, would be 100% compatible.

    Translated from Greek ·
    Did you find this review helpful?
  • 5
    2 out of 2 members found this review helpful

    Verified purchase

    The signal is crystal clear!!!! There are 8 televisions on it

    Translated from Greek ·
