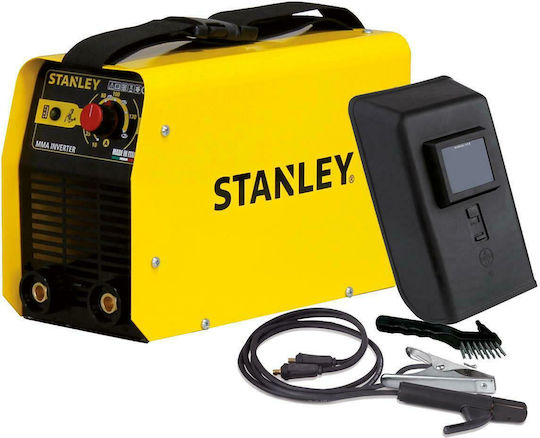

Stanley WD200IC2 Welding Machine Inverter MMA with Maximum Welding Current 200A and Duty Cycle 20%
Welding Machines

Stanley WD200IC2 Welding Machine Inverter MMA with Maximum Welding Current 200A and Duty Cycle 20%

High reliability welding machine, made in Italy. Low power consumption. IGBT MMA inverter technology.

Suitable for rutile electrodes.

  • Arc ignition
  • Hot Start system supporting Arc Force System,...

High reliability welding machine, made in Italy. Low power consumption. IGBT MMA inverter technology.

Suitable for rutile electrodes.

  • Arc ignition
  • Hot Start system supporting Arc Force System, automatically eliminates arc current to avoid electrode short-circuiting.
  • Anti Stick prevents the electrode from sticking during welding.
  • Durable metal body with...
See full description See full description

  • Welding Current

    200

    Suitable for professional use on thick metals, such as steel or cast iron constructions.

  • Duty Cycle

    The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

    2.

    For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.

  • Power Supply Voltage

    230

    It is the supply voltage that the machine requires from the electrical grid.

  • Power

    8.5

    Affects the power consumption of the machine and determines if it can be supported by the electrical network you are using.
  • See all
200 00 €
Delivery by Fri, 07 Aug
59,00 €   shipping cost
Sent from Greece
From Afoi Gizounidi
Greece
2 pieces
See Tools on the page of Afoi Gizounidi
Review the product
Product report

Description

Description

High reliability welding machine, made in Italy. Low power consumption. IGBT MMA inverter technology.

Suitable for rutile electrodes.

  • Arc ignition
  • Hot Start system supporting Arc Force System, automatically eliminates arc current to avoid electrode short-circuiting.
  • Anti Stick prevents the electrode from sticking during welding.
  • Durable metal body with turbo fan.
  • Easy to use thanks to its lightweight compact design.
  • LED thermal protection indicator.

Technical specifications:

  • Weight: 4.8 kg
  • Network voltage: 230 V
  • Open circuit voltage: 90 V
  • Protection degree: IP 21S
  • Electrode diameter max.: 1.6-5.0 mm
  • Power: 8.5 KVA
  • Maximum power: 53 kVA
  • Frequency: 50/60 Hz
  • Source type: MMA
  • Electric phases: Single-phase
  • Welding current: 5-130 A
  • Performance: 20%: 200 A
  • Product dimensions: height 20 cm X width 14 cm X depth 34.5 cm

Delivery materials: clamp cables, grounding body, mask, chipping hammer.

Shipping weight: 6 kg.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
MMA

Type

MMA

Creates thick and strong bonds without the need for external gas supply, making it ideal for out-of-lab welding.
Welding Current (max)
200 A

Welding Current (max): 200


Suitable for professional use on thick metals, such as steel or cast iron constructions.
Operation Cycle (max Ampere)
20 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Supply Voltage
230 V

Supply Voltage: 230


It is the supply voltage that the machine requires from the electrical grid.
Power
8.5 kVA

Power: 8.5


Affects the power consumption of the machine and determines if it can be supported by the electrical network you are using.
Maximum Electrode Diameter
5 mm

Maximum Electrode Diameter: 5


The maximum electrode thickness that the machine can support, depending on the maximum current it can provide.

Additional Features

Inverter
Yes

Inverter


New technology welding. Very good in terms of performance, durability, and weight, but with a high cost of repair in case of damage. They have automation for better and safer work. If connected to a generator, it is recommended to choose one with 8kVA or more.
IGBT
No
VRD
No
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
No
Anti Stick
No
Arc Force
No
2T Operation
No
4T Mode
No
Spot Function
No
Pulsed
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

High reliability welding machine, made in Italy. Low power consumption. IGBT MMA inverter technology.

Suitable for rutile electrodes.

  • Arc ignition
  • Hot Start system supporting Arc Force System, automatically eliminates arc current to avoid electrode short-circuiting.
  • Anti Stick prevents the electrode from sticking during welding.
  • Durable metal body with turbo fan.
  • Easy to use thanks to its lightweight compact design.
  • LED thermal protection indicator.

Technical specifications:

  • Weight: 4.8 kg
  • Network voltage: 230 V
  • Open circuit voltage: 90 V
  • Protection degree: IP 21S
  • Electrode diameter max.: 1.6-5.0 mm
  • Power: 8.5 KVA
  • Maximum power: 53 kVA
  • Frequency: 50/60 Hz
  • Source type: MMA
  • Electric phases: Single-phase
  • Welding current: 5-130 A
  • Performance: 20%: 200 A
  • Product dimensions: height 20 cm X width 14 cm X depth 34.5 cm

Delivery materials: clamp cables, grounding body, mask, chipping hammer.

Shipping weight: 6 kg.

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Type
MMA

Type

MMA

Creates thick and strong bonds without the need for external gas supply, making it ideal for out-of-lab welding.
Welding Current (max)
200 A

Welding Current (max): 200


Suitable for professional use on thick metals, such as steel or cast iron constructions.
Operation Cycle (max Ampere)
20 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Supply Voltage
230 V

Supply Voltage: 230


It is the supply voltage that the machine requires from the electrical grid.
Power
8.5 kVA

Power: 8.5


Affects the power consumption of the machine and determines if it can be supported by the electrical network you are using.
Maximum Electrode Diameter
5 mm

Maximum Electrode Diameter: 5


The maximum electrode thickness that the machine can support, depending on the maximum current it can provide.

Additional Features

Inverter
Yes

Inverter


New technology welding. Very good in terms of performance, durability, and weight, but with a high cost of repair in case of damage. They have automation for better and safer work. If connected to a generator, it is recommended to choose one with 8kVA or more.
IGBT
No
VRD
No
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
No
Anti Stick
No
Arc Force
No
2T Operation
No
4T Mode
No
Spot Function
No
Pulsed
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
