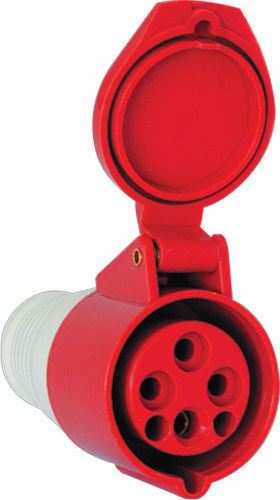

Made from special high-quality plastic with alloy elements against aging from sun exposure, to increase mechanical resilience. Provides reliable connection and a high level of protection against electric current. Features an IP rating of no less than IP44/67. Designed for surface or concealed installation, portable or stationary type.

Technical specifications:

• Nominal voltage: 500V
• Nominal short-circuit current: according to the installed protection in the panels
• Surge withstand capability: 8kV
• Mechanical wear resistance: 3000 cycles
• IP code: IP44/67
• Plastic: UV rays resistant
• Ambient temperature: -5° to +65°С
• Altitude: up to 2000m
• Plugs and sockets: 6h

Applications:

• Industrial buildings
• Electrical panels
• Generators
• Electric motors

Standards: EN60309-1; EN60309-2

Protection rating: IP44

Nominal voltage: 400V

Nominal current: 16A

Number of poles: 4

Brand: ELMARK

Model: HT|portable type
