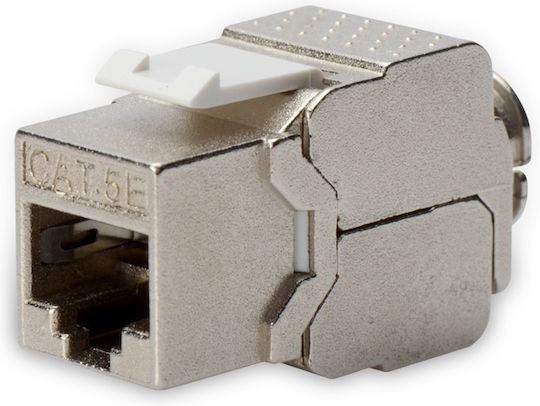

Digitus Keystone DN-93512 RJ45 Cat.5e 1τμχ

The Digitus DN-93512 Keystone module is shielded and features a Cat.5e RJ45 (8P8C) port. The connection is tool-free, and the module is compatible with the Keystone system, making it suitable for...

The Digitus DN-93512 Keystone module is shielded and features a Cat.5e RJ45 (8P8C) port. The connection is tool-free, and the module is compatible with the Keystone system, making it suitable for computer, IP telephony, and multimedia applications.

It supports data transmission speeds of up to 1000 Mbps and fits a 483 mm (19") 1U panel, with space for up to...

See full description See full description
3 65 €
Delivery Wed, 25 Nov - Tue, 01 Dec
14,00 €   shipping cost
Sent from Greece
From Smart Technology 4.8 (39)

Learn more about invoicing

Description

Description

The Digitus DN-93512 Keystone module is shielded and features a Cat.5e RJ45 (8P8C) port. The connection is tool-free, and the module is compatible with the Keystone system, making it suitable for computer, IP telephony, and multimedia applications.

It supports data transmission speeds of up to 1000 Mbps and fits a 483 mm (19") 1U panel, with space for up to 24 modules. The housing is made of nickel-plated die-cast zinc, and the RJ45 socket is made of ABS UL 94V-0.

  • Quantity: 1
  • Port type: RJ45 (8P8C)
  • Network category: Cat.5e
  • Shielding: STP
  • Transmission speed: Up to 1000 Mbps
  • Connection: Tool-free
  • Contacts: 8 (4 pairs)
  • Housing material: Chrome-plated die-cast zinc
  • RJ45 socket material: ABS UL 94V-0
  • RJ45 contacts: Gold-plated phosphor bronze with nickel plating
  • LSA terminal: Krone LSA+, UL 94V-2
  • Board: FR4, UL 94V-0
  • Conductor size: 22–26 AWG
  • Cable type: Solid and stranded
  • Operating temperature: -20 °C to +70 °C
  • Plug retention force: 30 N max. (IEC 60603-7-5)
  • Tensile load: 7.7 kg
  • Mating cycles: Over 750 (ISO/IEC 11801, IEC 60603-7-5)
  • Insulation resistance: Over 500 megaohms
  • Voltage withstand: 1000 V DC (contact/contact), 1500 V DC (contact/ground)
  • Mounting: In a 483 mm (19") 1U panel, up to 24 modules
  • Weight: 23 g

Manufacturer

See full description

Specifications

Specifications

Port Type
RJ45
Network Category
Cat.5e
Pieces
1 pcs

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Digitus DN-93512 Keystone module is shielded and features a Cat.5e RJ45 (8P8C) port. The connection is tool-free, and the module is compatible with the Keystone system, making it suitable for computer, IP telephony, and multimedia applications.

It supports data transmission speeds of up to 1000 Mbps and fits a 483 mm (19") 1U panel, with space for up to 24 modules. The housing is made of nickel-plated die-cast zinc, and the RJ45 socket is made of ABS UL 94V-0.

  • Quantity: 1
  • Port type: RJ45 (8P8C)
  • Network category: Cat.5e
  • Shielding: STP
  • Transmission speed: Up to 1000 Mbps
  • Connection: Tool-free
  • Contacts: 8 (4 pairs)
  • Housing material: Chrome-plated die-cast zinc
  • RJ45 socket material: ABS UL 94V-0
  • RJ45 contacts: Gold-plated phosphor bronze with nickel plating
  • LSA terminal: Krone LSA+, UL 94V-2
  • Board: FR4, UL 94V-0
  • Conductor size: 22–26 AWG
  • Cable type: Solid and stranded
  • Operating temperature: -20 °C to +70 °C
  • Plug retention force: 30 N max. (IEC 60603-7-5)
  • Tensile load: 7.7 kg
  • Mating cycles: Over 750 (ISO/IEC 11801, IEC 60603-7-5)
  • Insulation resistance: Over 500 megaohms
  • Voltage withstand: 1000 V DC (contact/contact), 1500 V DC (contact/ground)
  • Mounting: In a 483 mm (19") 1U panel, up to 24 modules
  • Weight: 23 g

Manufacturer

Port Type
RJ45
Network Category
Cat.5e
Pieces
1 pcs

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
