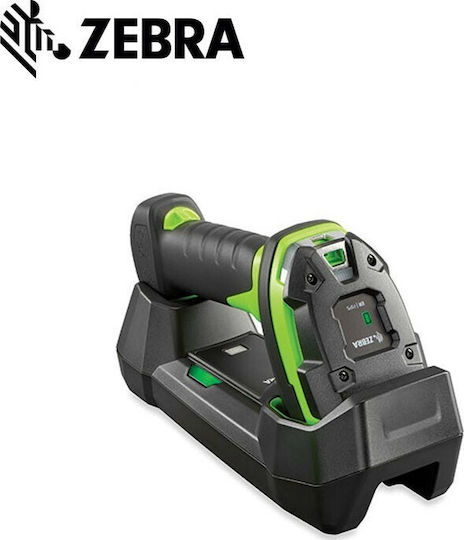

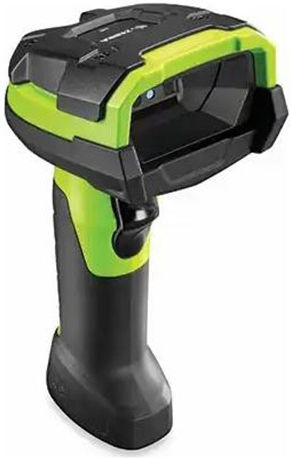

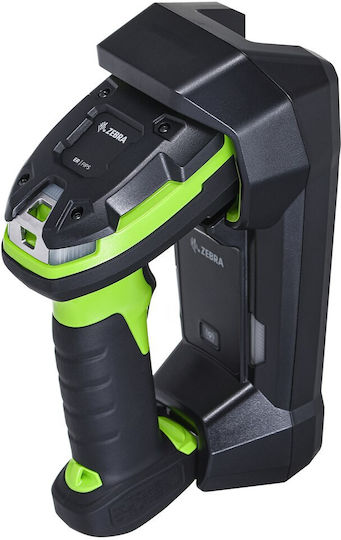

The Zebra DS3678-ER handheld scanner reads 2D barcodes using Area Imager technology, including Aztec Code and PDF417. It connects wirelessly via Bluetooth 4.0 or through a wired connection via USB, RS-232, and keyboard interface, and also supports wired LAN. The Li-Ion battery has a capacity of 3100 mAh and is rated for up to 70,000 scans.
Its housing is IP67-rated and resistant to dust, water, and impacts. It operates at temperatures from -20 to 50 °C and can be stored at temperatures from -40 to 70 °C.
- Type: Handheld scanner
- Scanning technology: Area Imager (2D)
- Supported codes: Aztec Code, PDF417
- Connectivity: Wireless and wired
- Connection types: USB, Serial, Bluetooth, KBW-PS2, Ethernet
- Interfaces: RS-232, USB, keyboard interface
- Bluetooth version: 4.0
- Bluetooth Low Energy: Supported
- Wireless range: 100 m
- Battery: Li-Ion
- Battery capacity: 3100 mAh
- Battery life: Up to 70,000 scans
- Protection rating: IP67
- Resistance: Dust, water, and impacts
- Operating temperature: From -20 to 50 °C
- Storage temperature: From -40 to 70 °C
- Operating relative humidity: 5–95%
- Dimensions: 142 × 76 × 185 mm
- Weight: 436 g
- Color: Black and green
- LED indicators: Yes
- Programming: Supported
- Certification: RoHS
- Package contents: USB cable, power adapter, charging cradle
- Product Number
- DS3678-ER3U42A2SVW
- Connectivity
- Wireless
- Scanner Type
- Handheld Scanner
- Readability
- Area Imager (2D)
- Connection Type
- USB, Serial, Bluetooth, KBW-PS2, Ethernet
