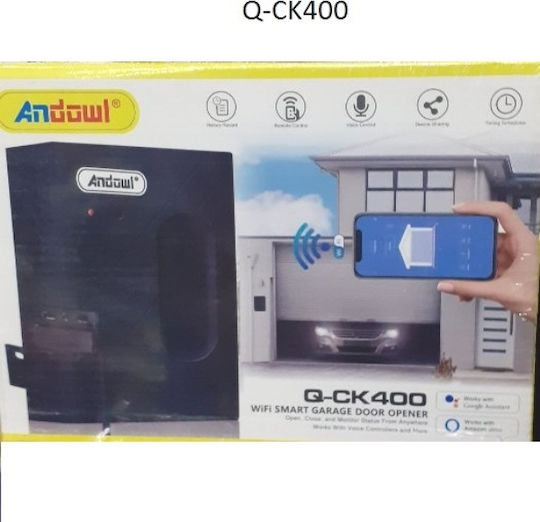

I installed it on a sliding garage gate/courtyard gate and it works flawlessly with the Tuya Smart app. To connect initially, it only needs 2.4 GHz Wi-Fi (so temporarily disable the 5 GHz Wi-Fi on your router if you have one), and after the connection, turn the 5 GHz Wi-Fi back on for your other devices. The initial setup is done with your mobile phone (Tuya app), this device, and your wireless router, all close to each other, and then after completion it will be installed in the final location; read the instructions. It does not include a USB power supply, although it does include the cable (provide power from a mobile phone charger, for example an old one you no longer need, with a USB 5 Volt, 2 Ampere output, and it works). It is very small in size and I fit the whole device together with the cables and the charger/power supply inside the waterproof box of the garage gate motor (Proteco Meko 5) outside in the garden. In the Tuya app it also correctly shows whether the gate is closed or open (provided you make the correct installation of the sensor and magnetic contact, both waterproof, which are included in the Andowl Q-CK400 package), while at the same time it sends you notifications when it opens or closes and records when it opened or closed wherever you are.
I also control it through Google Home (Android) and by voice with Google Assistant.

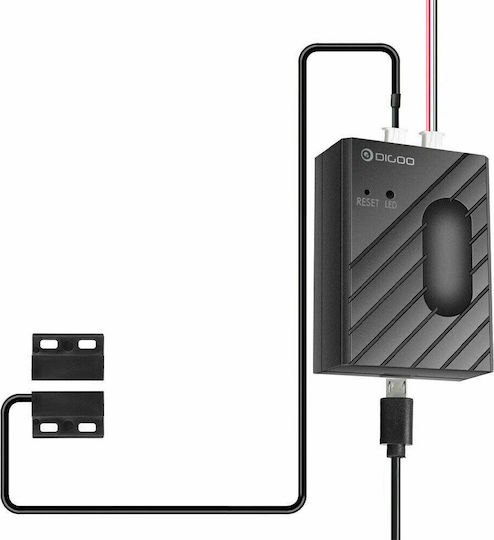

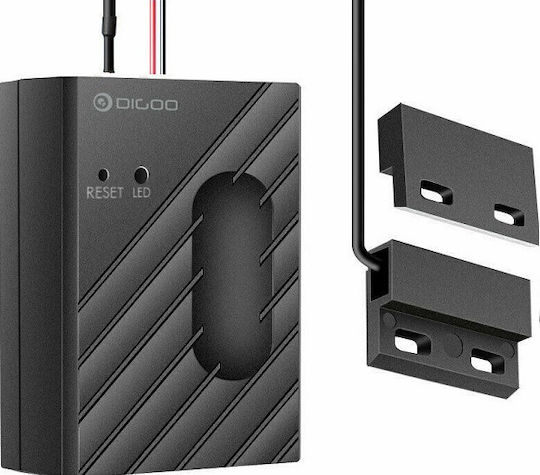

The sensor does not need a longer cable than the one in its package (as some people write); in any case, it is mounted on a fixed point of the gate near the motor board, e.g. a base, pillar, etc., while the magnetic contact (which has no cable) is mounted on the opening/sliding gate and moves freely over as long a travel as needed.
In general, remember that for this device to work with your home Wi-Fi, the distance where it will be installed, e.g. near the gate motor, must be within the range of the router or mesh you have, first testing at that point whether the Wi-Fi signal received by your phone is satisfactory. I have installed it 40 meters from the house via a Mercusys Halo H50G Mesh Wi-Fi Router and it works perfectly.
Also, for flawless notifications in the app for opening and closing, I added a small metal perforated mounting clamp https://www.skroutz.gr/s/43166981/Tserki-Tserki-11374.html for better support and perfect adjustment of the sensor with the magnetic contact.
Smart Gate control. Incredible ease and capability.
From my phone and the Tuya app, I have closed a forgotten open courtyard gate in the countryside (which I also see via camera), from... abroad!!!
Το τοποθέτησα σε συρόμενη γκαραζόπορτα/αυλόπορτα και δουλεύει άψογα με την εφαρμογή Tuya Smart. Για να συνδεθεί αρχικά θέλει μόνο με 2.4 GHz Wi-Fi (γι' αυτό απενεργοποιήστε προσωρινά στο router σας το 5 GHz Wi-Fi αν υπάρχει) και μετά την σύνδεση ενεργοποιήστε και πάλι το 5 GHz Wi-Fi για τις άλλες συσκευές σας. Το αρχικό σετάρισμα γίνεται με το κινητό σας (εφαρμογή Tuya), αυτή την συσκευή και το ασύρματο ρούτερ σας, όλα σε κοντινή απόσταση μεταξύ τους και μετά την ολοκλήρωση θα γίνει η τοποθέτηση στο χώρο τελικής εγκατάστασης, διαβάστε τις οδηγίες. Δεν περιλαμβάνει τροφοδοτικό τύπου USB ενώ έχει το καλώδιο (δώστε ρεύμα από ένα φορτιστή κινητού τηλεφώνου π.χ. παλιό που δεν χρειάζεστε με έξοδο USB 5 Volt, 2 Ampere, και δουλεύει). Είναι πολύ μικρό σε μέγεθος και χώρεσα όλη τη συσκευή μαζί με τα καλώδια και τον φορτιστή/τροφοδοτικό μέσα στο στεγανό κουτί του μοτέρ της γκαραζόπορτας (Proteco Meko 5) έξω στον κήπο. Στην εφαρμογή Tuya επίσης δείχνει σωστά αν η πόρτα είναι κλειστή ή ανοικτή (εφόσον κάνετε την σωστή τοποθέτηση του αισθητήρα και μαγνητικής επαφής, στεγανά και τα δύο, που περιέχονται στην συσκευασία του Andowl Q-CK400) ενώ παράλληλα σου στέλνει ειδοποιήσεις όταν ανοίγει ή κλείνει και καταγράφει πότε άνοιξε ή έκλεισε όπου κι΄ αν βρίσκεστε.
Επίσης το ελέγχω και μέσω Google Home (Android) και φωνητικά με Google Assistant.
Ο αισθητήρας δεν χρειάζεται μεγαλύτερο καλώδιο από αυτό της συσκευασίας του (όπως γράφουν κάποιοι), έτσι και αλλιώς στηρίζεται επάνω σε σταθερό σημείο της πόρτας κοντά στην πλακέτα του μοτέρ π.χ. βάση, κολώνα κτλ. ενώ η μαγνητική επαφή (που δεν έχει καλώδιο) στηρίζεται πάνω στην ανοιγόμενη/συρόμενη πόρτα και μετακινείται ελεύθερα σε όσο μεγάλη διαδρομή.
Γενικά να θυμάστε ότι για να λειτουργήσει η συσκευή αυτή με το Wi-Fi του σπιτιού σας, πρέπει η απόσταση που θα τοποθετηθεί π.χ. κοντά στο μοτέρ της πόρτας, να είναι στην εμβέλεια του Router ή Mesh που έχετε, δοκιμάζοντας πρώτα σε εκείνο το σημείο αν το σήμα Wi-Fi που λαμβάνει το κινητό σας είναι ικανοποιητικό. Εγώ το έχω τοποθετήσει σε απόσταση 40 μέτρων από το σπίτι μέσω Mercusys Halo H50G Mesh Wi-Fi Router και λειτουργεί τέλεια.
Επίσης για άψογες ειδοποιήσεις στην εφαρμογή από το άνοιγμα και κλείσιμο, έβαλα λίγο μεταλλικό διάτρητο τσέρκι στερέωσης https://www.skroutz.gr/s/43166981/Tserki-Tserki-11374.html για καλύτερη στήριξη και τέλεια ρύθμιση του αισθητήρα με τη μαγνητική επαφή.
Smart Gate control. Απίστευτη ευκολία και δυνατότητα.
Από το κινητό και την εφαρμογή Tuya, έχω κλείσει ξεχασμένη ανοικτή αυλόπορτα στην επαρχία (που την βλέπω και μέσω κάμερας), από το... εξωτερικό!!!
