The 80 Plus Gold certification ensures 90% efficiency at 50% load. Better power efficiency leads to less energy waste, less heat, and less fan noise. And with support from Intel processors, it will save more energy and more money.
Description
Specifications
80 Plus Gold Certification
The 80 Plus Gold certification ensures 90% efficiency at 50% load. Better power efficiency leads to less energy waste, less heat, and less fan noise. And with support from Intel processors, it will save more energy and more money.
High-Quality Japanese Capacitors
The main capacitors are high-quality Japanese, to produce efficient performance and ensure greater reliability.

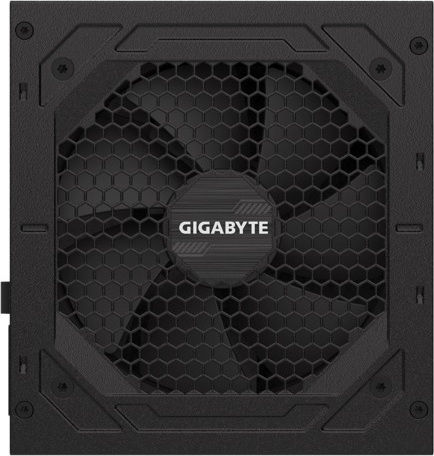

The fan speed is adjusted according to automatic power detection and will stop when the system is idle or under low load (less than 20% load). The fan with a hydraulic bearing provides greater and more stable lifespan.

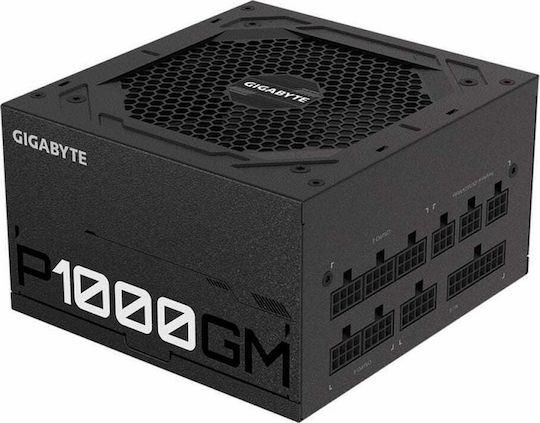

Fully Modular Design
All black flat cables are of modular design. Install only the cables you need to reduce clutter, increase airflow, and improve the thermal performance of the chassis.

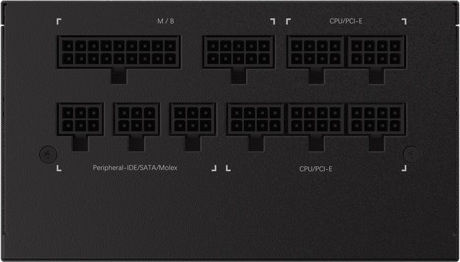

Connections
- 1x ATX 20 + 4-pin motherboard power connector.
- 2x EPS/ATX12V 8 Pin (4+4) Cable connectors for processor power supply.
- 6x PCIe 6+2 power connectors for graphics card, to take advantage of modern GPUs in combination with the capabilities of your PC.
- 8x SATA power connectors for SSD or HDD hard drives.
- 3x Molex 4-pin connectors for connecting additional peripherals.
- 1x floppy power connector.
System Protection
The P1000GM protects your PC from excessive power (OPP), excessive voltage (OVP), voltage drop (UVP), overcurrent (OCP), overheating (OTP), and short circuit (SCP).

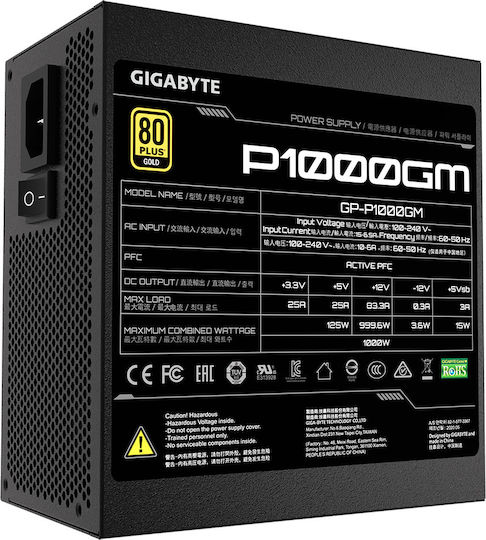

Power Supplies
- Operating Voltage: 100-240V
Maximum Load:
- Line Current +3.3 V: 25A
- Line Current +5 V: 25A
- Line Current +12 V: 83.3A
- Line Current -12 V: 0.3A
- Line Current +5 Vsb: 3A
Dimensions
- Power
- 1000 W
- Size
- ATX
- Modularity
- Full Modular
- Certification
- 80 Plus Gold
- Fan Dimension
- 120 mm
- Power Protection
- Over Current Protection (OCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Under Voltage Protection (UVP)
- Extra
- Fan Light
- Color
- Black
ATX Version
- ATX 3.1
- -
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
