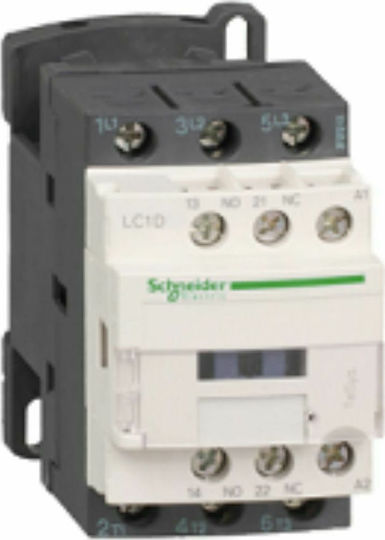

Rail Relay Power bar 3P 18A 230V AC 1Z 1R - LC1D18P7

• Number of Poles: 3
• AC-3 Current: 18 A (440V)
• Control Voltage: 230 V AC, 50/60 Hz
• Number of Auxiliary Contacts: 1
• Number of Side Contacts: 1
• Overvoltage Category: III
• Installation Method: Plate, Rail
• Main Circuit Connection: Screw Connection
• Coil Technology: Without Built-in Surge Limiting Module
• Signal Circuit Frequency: 25 - 400 Hz
• Minimum Drop-out Current: 5 mA for the signal circuit
• Minimum Drop-out Voltage: 17 V for the signal circuit
• Pollution Degree: 3
• Fire Resistance: 850 °C
• Height: 77 mm
• Width: 45 mm
• Depth: 86 mm
• Usage: Motor control, load resistance
