- Voltage: 18 V
- Maximum torque: 135 / 400 / 950 Nm
- Output power: 610W
- No-load speed: 0 - 400 / 1200 / 1900 rpm
- Impacts per minute: 0 - 2400 ipm
- Max. Bolt diameter: M20
- Length: 224 mm
- Height: 225 mm
- Hand/arm vibration - Impact: 13 m/s²
- Uncertainty K 1 (Vibration): 5.9 m/s²
- Sound pressure: 101 dB(A)
- Sound pressure uncertainty: 3 dB(A)
- Sound power: 112 dB(A)
- Sound power uncertainty: 3 dB(A)
- Max. Torque: 950 Nm
- Breakaway torque: 1625 Nm
- Socket: 1/2"
Specifications
- Voltage: 18 V
- Maximum torque: 135 / 400 / 950 Nm
- Output power: 610W
- No-load speed: 0 - 400 / 1200 / 1900 rpm
- Impacts per minute: 0 - 2400 ipm
- Max. Bolt diameter: M20
- Length: 224 mm
- Height: 225 mm
- Hand/arm vibration - Impact: 13 m/s²
- Uncertainty K 1 (Vibration): 5.9 m/s²
- Sound pressure: 101 dB(A)
- Sound pressure uncertainty: 3 dB(A)
- Sound power: 112 dB(A)
- Sound power uncertainty: 3 dB(A)
- Max. Torque: 950 Nm
- Breakaway torque: 1625 Nm
- Socket: 1/2"
Advantages
- High torque Li-Ion 18V BRUSHLESS XR impact wrench of the latest generation
- The powerful fan-cooled motor delivers up to 950 Nm of torque and 2400 impacts per minute for heavy-duty fastening applications
- Up to 1625 Nm of "breakaway" torque ensures the removal of the tightest bolts
- 3 Speed and torque settings give you the control that best suits your application
- The 1/2" (13 mm) square drive with "hog ring" socket retention allows for more efficient torque delivery and excellent socket retention
- Bright white LED with delay feature for improved visibility and flashlight functionality
- Comfortable grip and XR rubber switch for greater application comfort and maximum control.
What is a brushless motor?
In DC electric motors, at the point where the electric current is supplied to their rotating part, two brushes (also called carbon brushes) are used. Over time, due to friction, the brushes wear out and need to be replaced. For this reason, in recent years, brushless electric motors have been developed, which greatly surpass a brushed motor.
Advantages
- Due to the absence of brushes, they exhibit minimal mechanical wear and the need for maintenance is minimized.
- They have higher efficiency.
- No noise and sparks are caused by friction.
- They achieve very high speeds.
Product Details
- Power Source
- Battery
- Bit Size
- 1/2"
- Net Weight
- 2.6 kg
Battery Specifications
- Number of Batteries
- 0
- Volt
- 18 V
- Lithium
- No
- Compatible Battery Type
- -
Features & Functions
- Maximum Motor Speed
- 1900 rpm
- Speed Setting
- Yes
- Maximum Torque
- 950 Nm
- Torque Adjustment
- Yes
- Maximum Impact Rate
- 2400 bpm
- Brushless
- Yes
Brake Type
- Axle Brake
- No
- Electric Brake
- No
- Electronic Brake
- No
Extras
- Carrying Case
- Hard Case
- Built-In Light
- Yes
- Kit Contents

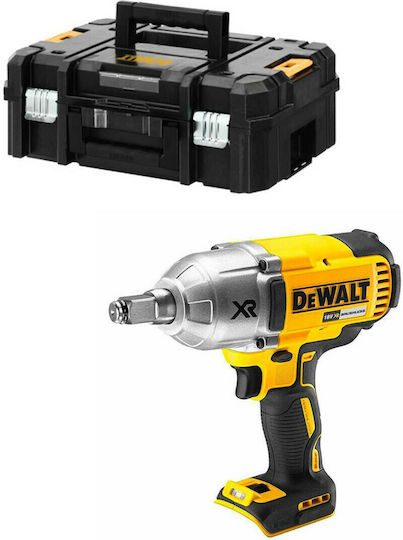

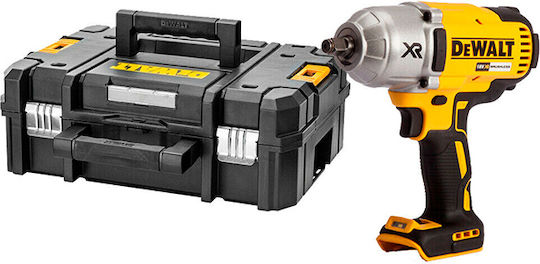

- Solo with Hard Case HOG-ring
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
