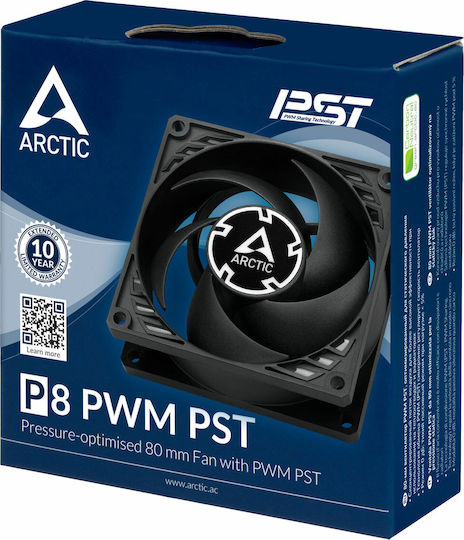

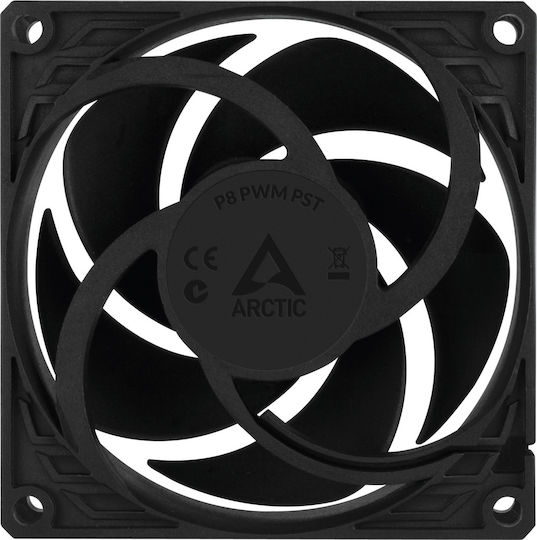

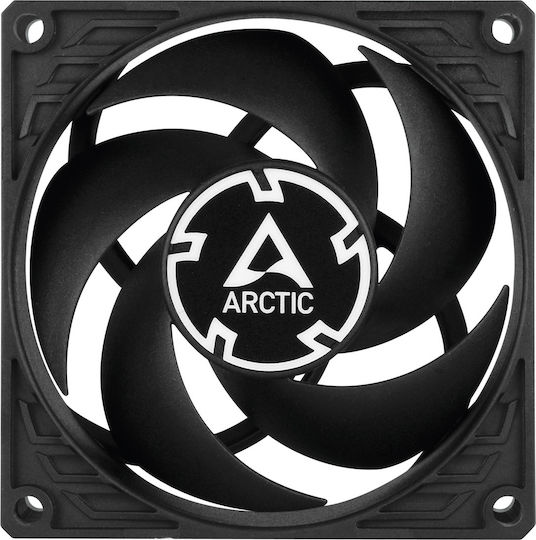

The Arctic P8 PWM PST fan has a diameter of 80 mm and delivers airflow of up to 23.4 cfm, with a maximum speed of 3,000 rpm. PWM control allows the motherboard to adjust the speed to cooling needs, reducing noise. Its focused airflow and static pressure of 1.9 mmH₂O make it suitable for use with heatsinks and radiators.
The motor uses a neodymium magnet ring and sinusoidal magnetization to reduce vibrations. Speed is controlled via PWM over a range of 200–3,000 rpm, while PST functionality is supported by a 4-pin PWM connection. A 4-pin Molex connection is also included.
- Dimensions: 80 × 80 × 25 mm
- Maximum speed: 3,000 rpm
- PWM speed range: 200–3,000 rpm
- Maximum airflow: 23.4 cfm / 40.3 m³/h
- Static pressure: 1.9 mmH₂O
- Noise level: 26.2 dB
- Operating voltage: 12 V DC
- Cable length: 400 mm
- Connections: 4-pin Molex and 4-pin PWM
- Color: Black
- Lighting: No LED
- Quantity: 1
Main Specifications
- Dimension
- 80 mm
- Colour
- Black
- Packaging
- 1 pcs
Technical Specifications
- Fan Speed (Max)
- 3000 rpm
- Noise Level (Max)
- 26.2 dB
- Air Flow (Max)
- 23.4 cfm
- Connection
- 4-Pin Molex, 4-Pin PWM
- LED Color
- Without LEDs
- Reverse Blade
- No
- Air Pressure
- 1.9 mmH₂O: millimeters of water
