Ajax Systems StarterKit Cam Plus Wireless Alarm System with Motion Detector , Door Sensor , Remote and Hub (Wi-Fi / GSM) White

Name: Ajax Systems StarterKit Cam Plus Wireless Alarm System with Motion Detector , Door Sensor , Remote and Hub (Wi-Fi / GSM) White
Brand: Ajax Systems
SKU: 28574071
Price: 564.99 EUR
Availability: InStock
Rating: 4.9 (16 reviews)

Key features:

Control Hub
Connectivity: Wi-Fi & GSM
SpaceControl Remote
DoorProtect Magnetic Contact
Motion Sensor with Camera

See full description

Connectivity

Wi-Fi

Connects to smart devices via Wi-Fi network.

GSM

It has the ability to insert a SIM card, ensuring the transfer of signals to the receiver or to you, even if the phone line is not working.
Motion Sensor

Motion detectors have the ability to detect small changes in the environment that have been caused, for example, by the movement of the human body.
Wireless
See all

564 99 €

Delivery by Wed, 24 Jun

14,00 € shipping cost

Sent from Greece

From Dcs 4.9 (6)

4.9 (6 reviews)

Greece

3 pieces

See Home Security Systems & Accessories on the page of Dcs

Description

The AJAX Hub Kit Cam Plus has the capability of expansion with additional motion detectors and magnetic contacts, depending on the needs of each space, as well as the addition of extra touch keypad, internal and external sirens, glass break detector, smoke, temperature and carbon monoxide detector, and flood detector.

Additionally, the AJAX wireless alarm system allows the addition of a wireless switch for activation / deactivation of electrical devices with energy consumption recording, as well as the possibility of adding a camera to monitor our space.

The Starter Kit Cam Plus consists of:

Central unit (Hub 2 Plus)

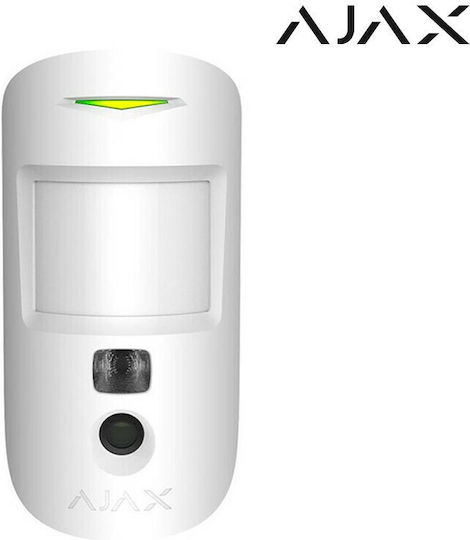

Motion detector with built-in camera (MotionCam) that sends photos when it detects movement in the area
Magnetic contact (DoorProtect)
Remote control (SpaceControl)

It features communication channels:

Dual Micro SIM (2G/3G/LTE)
Ethernet
Wi-Fi

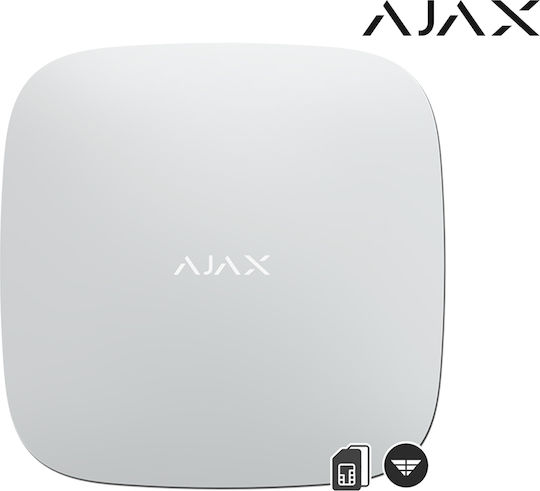

The following information concerns the Ajax Hub system

It is the brain of the Ajax alarm system.

The Ajax Hub optimizes the performance of every peripheral in the alarm system. It supervises and manages all network devices, simultaneously collecting data using the advanced Jeweller wireless management protocol. The Hub analyzes risk data, filters out false alarms, and notifies you when there is a real danger. Its protection against sabotage makes it a reliable solution for the space it protects.

Technical specifications of the central unit:

Jeweller and Wings radio technology
Sends photos from MotionCam detectors
Backup battery for 15 hours
Up to 100 IP Cameras or DVRs
Up to 5 wireless repeaters, REX
200 devices
64 separate automation scenarios (Smart Home)
200 users
50 Rooms
25 Groups
Certification Grade 2, CE

Technical Specifications Ajax Hub

Size: 163x163x36 mm
Weight: 362g
Operating voltage: 110-240 V AC
Wireless communication power: 25 mW
Operating temperature range: From -10°C to +40°C
Connectivity: 2x 2G SIM cards GSM (850/900/1800/1900 MHz), Ethernet
Communication protocol: Jeweller (868.0-868.6 MHz)
Communication range: Up to 2,000 m (in open area)
Backup battery: Li-Ion 2 Ah (autonomy time up to 16 hours)
Maximum number of users: 50
Maximum number of peripherals: 100
Tamper protection: Available

The following information concerns the Ajax DoorProtect system

Magnetic door and window detector.

With their small size, high-quality detection, and wireless communication, Ajax DoorProtect detectors can protect doors and windows on various floors of homes and offices.

Maximum Performance

Operates at a distance from the HUB up to 1,200 meters in open field or in a multi-floor business space.
Allows connection of a wired magnetic contact.
Can be used in alarm systems of other manufacturers using the uartBridge and ocBridge Plus extensions.

Easy Operation

Uses British-made magnetic (reed) switches that can be triggered 1,000,000 times without issue.
The two-way communication technology enhances periodic checks of peripherals and easy configuration.
Saves energy by efficiently adjusting consumption based on the distance from the Ajax Hub.
Has a battery life of up to 7 years with communication supervision every 1 minute.

Simple installation, professional level

There is no need to open the detector casing during installation due to the SmartBracket mounting bases.
Uses powerful magnets that can be installed up to 2 centimeters away from the main body of the contact.
The quality of the connection and the sensor detection method can be checked remotely.
The peripherals connect to the Ajax Hub with a single click.

Technical Specifications Ajax DoorProtect

Detector type: Wireless
Mounting: Surface mount
Distance from magnet: Up to 1 cm (small magnet), up to 2 cm (large magnet)
Usage: Indoor
Wired contact connection input: Available
Tamper protection: Available
Wireless transmission power: 20 mW
Communication protocol: Jeweller (868.0-868.6 MHz)
Maximum distance between detector and central unit (HUB): Up to 1,200 m (in open area)
Power supply: CR123A battery
Power supply voltage: 3 V
Battery life: Up to 7 years
Operating temperature range: From 0°C to +50°C
Operating humidity: Up to 80%
Dimensions: 20×90 mm

The following information pertains to the Ajax SpaceControl system

Remote control with panic button.

With rolling code technology and signal identity verification, the Ajax SpaceControl operates at a distance of up to 1,300 meters from the Ajax Hub in open space. With one press, the device activates full or partial arming of a space. The system status is indicated by light signals.

Maximum Performance

Operates at a distance from the HUB up to 1,300 meters in open field or in a multi-floor business space.
Can be used in alarm systems of other manufacturers with the use of uartBridge and ocBridge Plus extensions.
Features a panic button.
Can partially arm the alarm system (Stay).

Easy Operation

With two-way communication technology with the HUB, the remote control confirms the sending of each command.
The user can disable the panic button to avoid pressing it by mistake.

Connection and usage

Ready to use as soon as you take it out of the packaging!
The battery is pre-installed so there is no need to open the remote control casing.
Connects to the Ajax Hub with just one click via the app.

Technical Specifications Ajax SpaceControl

Number of buttons: 4
Panic button: Available
Alarm cancel button: Available
Wireless transmission power: 20 mW
Communication protocol: Jeweller (868.0-868.6 MHz)
Maximum remote control distance to central HUB unit: Up to 1,300 m (in open area)
Communication protocol: Jeweller (868.0-868.6 MHz)
Power supply: CR2032 battery
Power supply voltage: 3 V
Battery life: Up to 3 years
Operating temperature range: From -20°C to +50°C
Operating humidity: Up to 90%
Dimensions: 65x37x10 mm

At a glance

The AJAX wireless alarm system provides:

Protection against sabotage

Notifies and continues to operate with the built-in battery for up to 15 hours.

All devices have protection against any attempt at sabotage.

All data is encrypted and always secure.

The system will continue to operate normally via GSM/GPRS with a SIM card.

In case of jamming, the system notifies and the detectors change transmission channel.

The "first step" detection technology will notify you immediately.

The system immediately detects any surveillance weakness and notifies.

In case of communication interruption with the Server, there will be immediate notification.

Manufacturer

Ajax Systems - Home Alarm Systems Ajax Systems

See full description

Specifications

Type

Wireless: Yes

Motion Sensor: Yes

Remote Control: Yes

Siren: No

Door/Window Sensor: Yes

Camera: Yes

Autonomic: No

Keyboard: No

Hub: Yes

Quantity

Motion Sensor: 1

Door/Window Sensor: 1

Remote Control: 1

Attributes

Connectivity: Wi-Fi, GSM

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
