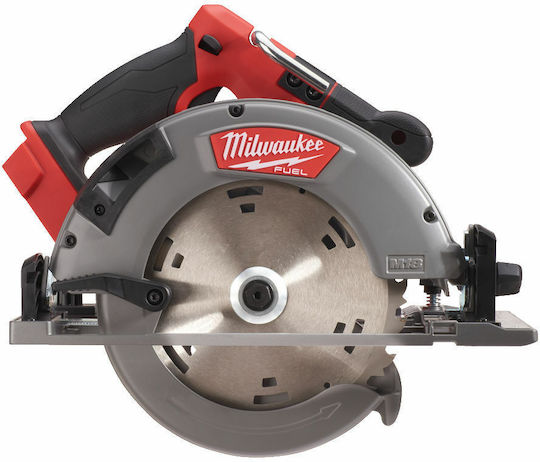

The Milwaukee M18 FCSG66-0 circular saw features a POWERSTATE™ brushless motor and REDLINK PLUS™ electronics. Its 190 mm blade provides a cutting depth of up to 66 mm at 90° and 48 mm at 45°, while the no-load speed reaches 5,800 rpm. The magnesium shoe is compatible with the Milwaukee guide rail for straight, precise cuts in sheet materials.

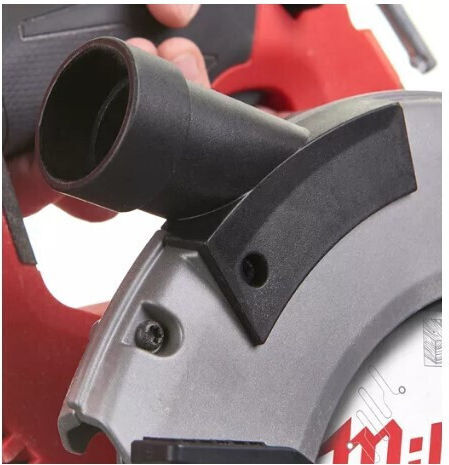

The dust extraction adapter fits Milwaukee dust extractors, while the integrated LED light illuminates the work area. The circular saw works with all Milwaukee M18 batteries and comes with a blade, side guide, dust extraction chute and blade wrench.
- Power source: Battery
- Voltage: 18 V
- Compatible batteries: Milwaukee M18
- Batteries included: 0
- No-load speed: 5,800 rpm
- Motor: POWERSTATE™ brushless
- Electronics: REDLINK PLUS™
- Blade diameter: 190 mm
- Blade bore diameter: 30 mm
- Cutting depth at 90°: 66 mm
- Cutting depth at 45°: 48 mm
- Bevel capacity: 45°
- Dust extraction system: Dust extraction adapter
- Lighting: LED
- Guide rail compatibility: Yes
- Package contents: Blade, side guide, dust extraction chute and blade wrench
- Carrying case: Not included
Main Specifications
- Power Source
- Battery
- Rail
- Yes
- Guide
- No
- Carrying Case
- Without
- Net Weight
- -
Battery Specifications
- Number of Batteries
- 0
- Volt
- 18 V
- Lithium
- No
- Compatible Battery Type
- Milwaukee M18
Features & Functions
- Maximum Motor Speed
- 5800 rpm
- Speed Adjustment
- No
- Dust Suction System
- Yes
- Saw Blade Hole Diameter
- 30 mm
- Saw Blade Diameter
- 190 mm
- Max. Wood Cutting Capacity (90°)
- 66 mm
- Max. Wood Cutting Capacity (45°)
- 48 mm
- Miter Capability
- 45 °
- Plunge Saw
- No
- Brushless
- Yes
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
