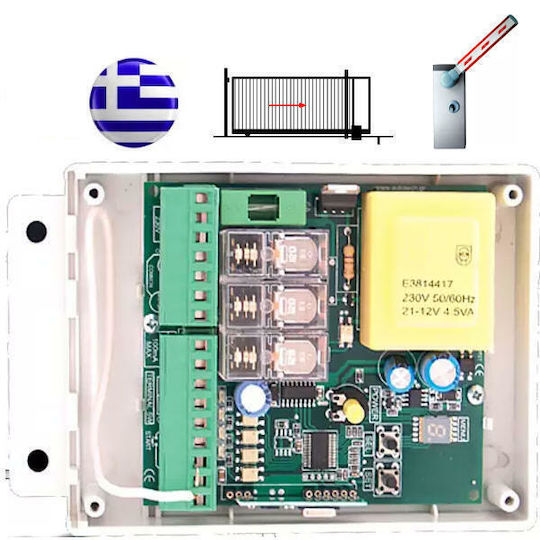

The Autotech S5070S control board operates single-phase motors for sliding garage doors or traffic barriers with NC-type limit switches. It has a built-in 433.92 MHz receiver for fixed-code or rolling-code remote controls, and diagnostic LEDs for its inputs. It supports safety photocells, command buttons, and a warning light.

Settings include automatic closing, operating time, and motor torque, as well as slow movement, electric braking, and pedestrian opening functions. It also features an open-only mode and the option to reverse the motor direction.

• Power supply: Single-phase, 230 V AC
• Receiver frequency: 433.92 MHz
• Remote control coding: 12-bit fixed code, Autotech 24-bit, or 64-bit KeeLoq rolling code
• Maximum number of remote controls: 100
• Antenna: Internal
• Operating temperature: -20 °C to +50 °C
• Enclosure: Plastic
• Enclosure dimensions: 154 x 98 x 45 mm
• Board dimensions: 100 x 88 mm
• Weight: 0.45 kg
• Limit switches: NC type, with automatic recognition
• Photocell contacts: NC type
• Automatic closing time: Adjustable from 2 to 120 seconds
• Operating time: Adjustable from 4 to 320 seconds
• Torque adjustment: 50% to 100%
• Motor power output: 230 V AC
• Accessory power output: 24 V AC
• Remote control registration: Via the REMOTE button
• Pedestrian opening: Via remote control
• Indicators: Diagnostic LEDs for the inputs
• Terminal blocks: Removable
• Technology: SMD
• Marking: CE
• Manual: In Greek
• Country of origin: Greece
