For reliable power and exceptional electrical performance, each power supply in the RMx series features an LLC resonant topology with DC-DC conversion and 105°C rated Japanese electrolytic capacitors. With precise timing, the RMx supports Microsoft Modern Standby, ensuring extremely fast wake-up times from sleep and better performance at low loads.
Reliable Operation
For reliable power and exceptional electrical performance, each power supply in the RMx series features an LLC resonant topology with DC-DC conversion and 105°C rated Japanese electrolytic capacitors. With precise timing, the RMx supports Microsoft Modern Standby, ensuring extremely fast wake-up times from sleep and better performance at low loads.
80 PLUS Gold
It has 80 PLUS Gold certification, which means it provides clean power that reaches 85% of its total efficiency.
The extremely efficient operation of the series leads to lower energy consumption and lower operating costs. Given that it produces less heat, the fan does not need to work as hard and you will enjoy almost silent operation.

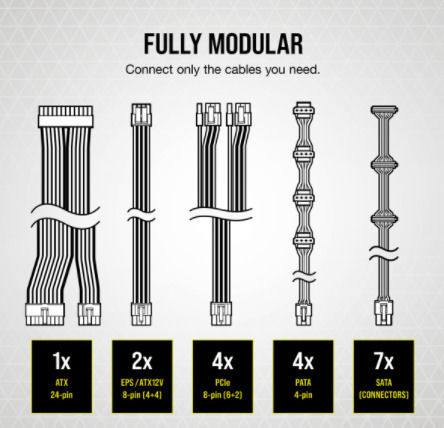

Fully Modular Wiring
The flat black cables are fully detachable, so you will only use the cables you need. Connection indicators make installation quick and easy.
Zero RPM Fan Mode
During low and medium loads, the cooling fan of the RM650x does not spin until it is needed, for almost silent operation.
Connectivity
- 1x ATX 20 + 4-pin motherboard power connector.
- 2x EPS/ATX12V 8 Pin (4+4) Cable CPU power connectors
- 4x PCIe 6+2 graphics card power connectors, to take advantage of modern GPUs in combination with your PC's capabilities
- 7x SATA power connectors for SSD or HDD hard drives
- 4x Molex 4-pin connectors for connecting additional peripherals
System Protection
- OPP (Over Power Protection): Shutdown function of the power supply when excessive power is drawn, generally between 110 and 140% of the advertised power.
- OTP (Over Temperature Protection): Protects the power supply from overheating damage, e.g. of the fan.
- UVP (Under Voltage Protection): Protection aimed at shutting down the power supply if the voltage drops too low.
- OVP (Over Voltage Protection): Overvoltage protection works similarly to UVP, but in reverse.
- SCP (Short Circuit Protection): Short circuit protection measures the resistance on each rail and will shut down when the resistance is lower than 0.1 ohms. Generally, this is combined with OPP, OCP, OVP, and UVP.
Voltages
- Operating Voltage: 100-240V
Maximum Load:
- +3.3V Line Current: 22A
- +5V Line Current: 20A
- +12V Line Current: 45.8A
- -12V Line Current: 0.3A
- +5Vsb Line Current: 3A
Package Contents
- Power Supply
- Power Cord
- Cable Ties
- Mounting Screws
Product Guides
Dimensions
- Power
- 650 W
- Size
- ATX
- Modularity
- Full Modular
- Certification
- 80 Plus Gold
- Fan Dimension
- 135 mm
- Power Protection
- Over Temperature Protection (OTP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Under Voltage Protection (UVP)
- Extra
- -
- Color
- Black
ATX Version
- ATX 3.1
- -
