Atlas Filtri Medium Duplex Plus 3P AFO SX TS Water Filtration System Double Central Supply Micron 3/4''
Water Filtration Systems

Atlas Filtri Medium Duplex Plus 3P AFO SX TS Water Filtration System Double Central Supply Micron 3/4''

Key features:

  • Central supply device
  • With air vent valve
  • Maximum operating pressure: 8 bar
See full description
Review the product
Product report

Description

Description

Central Supply Device

Medium Duplex Plus 3P 5”AFO SX TS 3/4” central supply filtration device, which consists of 3 pieces: Head, Fitting, Bowl. It is suitable for filtering drinking water, as well as retaining suspended particles, soil, and rust. The Medium Plus 3P central supply water filtration device from Atlas Filtri is combined with sediment string filters and washable filters.


Technical Specifications:

  • Maximum operating pressure: 8 bar
  • Maximum operating temperature: 45°C
  • Head/Fitting Material: Reinforced polypropylene
  • Bowl Material: PET
  • Air release valve: Polypropylene
  • Sealing gasket & valve: EPDM
  • Inlet/Outlet threads: Brass CW 617N
  • Transparent
  • Equipped with an air release valve for easy filter replacement

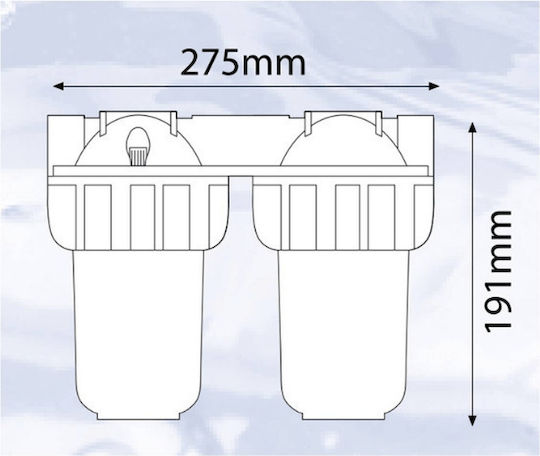

  • Height: 191 mm
  • Head diameter: 133 mm
  • Install in a shaded area
  • Thread section: 3/4’’
  • Made from non-toxic materials, suitable for drinking water

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Colour
Transparent
Number of Filters
Double
Type
Central Supply

Type

Central Supply
The installation is done by a plumber. They filter water for the whole house.
Material
Plastic
Compatibility
5"
with Replacement Filter
No
with Faucet
No
Pipe Cross Section
3/4''

Pipe Cross Section

This concerns the size of the connection thread of the device with the supply. The pipe diameter (inlet-outlet) of the device must be the same as that of the water supply, in order for the installation to be done correctly.
Self-Cleaning
No
with Manometer
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Central Supply Device

Medium Duplex Plus 3P 5”AFO SX TS 3/4” central supply filtration device, which consists of 3 pieces: Head, Fitting, Bowl. It is suitable for filtering drinking water, as well as retaining suspended particles, soil, and rust. The Medium Plus 3P central supply water filtration device from Atlas Filtri is combined with sediment string filters and washable filters.


Technical Specifications:

  • Maximum operating pressure: 8 bar
  • Maximum operating temperature: 45°C
  • Head/Fitting Material: Reinforced polypropylene
  • Bowl Material: PET
  • Air release valve: Polypropylene
  • Sealing gasket & valve: EPDM
  • Inlet/Outlet threads: Brass CW 617N
  • Transparent
  • Equipped with an air release valve for easy filter replacement
  • Height: 191 mm
  • Head diameter: 133 mm
  • Install in a shaded area
  • Thread section: 3/4’’
  • Made from non-toxic materials, suitable for drinking water
