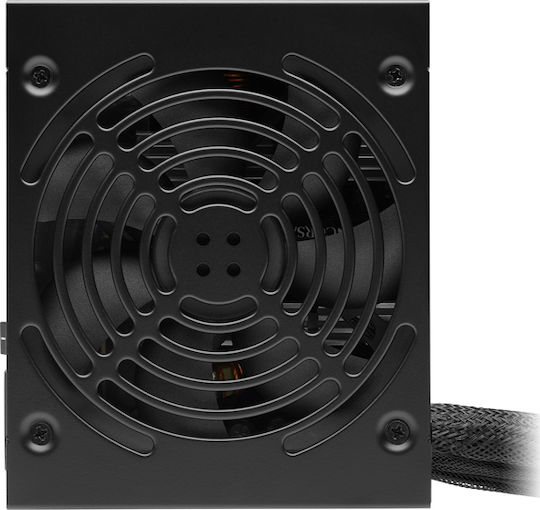

A 120mm low-noise, thermally controlled fan only spins at high speed when your power supply is under intense pressure, slowing down for quieter operation at lower loads.
With 80 PLUS Bronze certification it is ideal for powering a new computer at home or in the office. With a length of 125mm, a built-in 120mm fan and all necessary cables built in providing full power to your system at all times.
Low noise mode
A 120mm low-noise, thermally controlled fan only spins at high speed when your power supply is under intense pressure, slowing down for quieter operation at lower loads.
ULTRA EFFICIENT
CV series is 80 PLUS Bronze certified, providing up to 88% efficiency for less heat and lower energy costs.
Compact Design
CV series enclosures are only 125mm long, ensuring an easy fit in almost all modern computer boxes.
Black sleeved cables and a black powder-coated casing seamlessly fits your PC's style.
Connections
- 1x ATX 20 + 4-pin motherboard power connector.
- 1x EPS12V/ATX12V Cable (4+4) processor power connector
- 2x PCIe 6+2 graphics card power connectors, to take advantage of modern GPUs combined with your PC's capability
- 7x SATA power connectors for SSD or HDD hard disks
- 2x Molex 4-pin cables for connecting additional peripherals
- 1x 4-pin floppy connector for connecting a floppy disk reader or card reader
System Protection
- OPP
- OTP
- UVP
- OVP
- SCP
Voltages
- AC Input : 100-240V
Max Load:
- Voltage Line +3.3 V: 24A
- Voltage Line +5 V : 20A
- Voltage Line +12 V : 62A
- Voltage Line -12 V : 0,3A
- Voltage Line +5 Vsb : 3A
Package Contents
- CV Series ATX Power Supply
- AC Power Cord
- Mounting Screws
- Warranty Documentation
Product Guides
Dimensions
- Power
- 750 W
- Size
- ATX
- Modularity
- Full Wired
- Certification
- 80 Plus Bronze
- Fan Dimension
- 120 mm
- Color
- Black
ATX Version
- ATX 3.1
- -
