Abb Automatic Circuit Breaker 1A Double-pole AC 24756
Automatic Circuit Breaker

Abb Automatic Circuit Breaker 1A Double-pole AC 24756

The ABB S202-C1 miniature circuit breaker is mounted on a DIN rail and protects and controls circuits against overloads and short circuits. It features double-chamber safety screw terminals, with...

The ABB S202-C1 miniature circuit breaker is mounted on a DIN rail and protects and controls circuits against overloads and short circuits. It features double-chamber safety screw terminals, with separate spaces for connecting busbars and wires, as well as captive screws.

The markings and technical specifications are laser-printed, while the on/off...

See Description & Specifications See Description & Specifications
20 49 €
Delivery by Thu, 12 Nov
14,00 €   shipping cost
Sent from Greece
From Meidanis 4.6 (58)
4.6 (58 reviews)
Greece
15 pieces
See Electrical Panel Supplies on the page of Meidanis

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Review the product
Product report

Description & Specifications

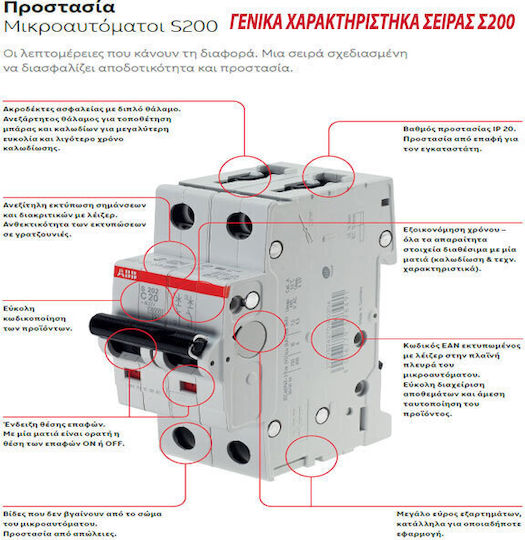

The ABB S202-C1 miniature circuit breaker is mounted on a DIN rail and protects and controls circuits against overloads and short circuits. It features double-chamber safety screw terminals, with separate spaces for connecting busbars and wires, as well as captive screws.

The markings and technical specifications are laser-printed, while the on/off indicators are red and green. It is suitable for residential, commercial and industrial installations and complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards.

  • Type: Miniature circuit breaker
  • Mounting: DIN rail
  • Poles: 2
  • Rated current: 1 A
  • Operating voltage: 400 V AC
  • Frequency: 50 Hz
  • Trip curve: C
  • Short-circuit breaking capacity: 6 kA
  • Protection rating: IP20
  • Standards: IEC/EN 60898-1, IEC/EN 60947-2
  • Colour: Light grey (RAL 7035)
  • Operating indicators: On/off, red and green
  • Terminals: Double-chamber safety screw terminals
  • Screws: Captive

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
2
Rated Current
1 A
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
Yes
DC
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
