Electrical Panel Accessories

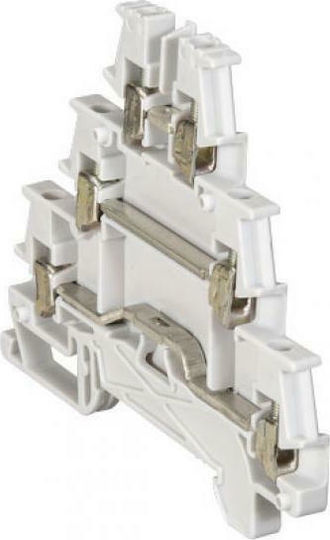

Legrand Viking Terminal block Electrical Panel 3 Positions 2.5 mm² 037151

Features: Electrical installation couplers are used for connecting electrical and mechanical two copper wires (wires and conductors).

Suitable for mounting on a uniform TH35 base with a depth of 7.5...

Features: Electrical installation couplers are used for connecting electrical and mechanical two copper wires (wires and conductors).

Suitable for mounting on a uniform TH35 base with a depth of 7.5 mm and 15 mm (according to PN-EN 60715).

Two connection positions for connection bridges to make equivalent connections, for couplers with a width of up to 8 mm....

See full description See full description

Description

Description

Features: Electrical installation couplers are used for connecting electrical and mechanical two copper wires (wires and conductors).

Suitable for mounting on a uniform TH35 base with a depth of 7.5 mm and 15 mm (according to PN-EN 60715).

Two connection positions for connection bridges to make equivalent connections, for couplers with a width of up to 8 mm.

  • Color: Gray (typical)
  • Nominal cross-section profile: 2.5 mm²
  • Cross-section of solid wire (wire): from 0.25 to 4.0 mm²
  • Cross-section of flexible wire (conductor): from 0.25 to 2.5 mm²
  • Width: 5 mm
  • Maximum cross-section of connected wires: 2.5 mm² with connection bridge

Manufacturer

See full description

Specifications

Specifications

Type
Terminal block

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Features: Electrical installation couplers are used for connecting electrical and mechanical two copper wires (wires and conductors).

Suitable for mounting on a uniform TH35 base with a depth of 7.5 mm and 15 mm (according to PN-EN 60715).

Two connection positions for connection bridges to make equivalent connections, for couplers with a width of up to 8 mm.

  • Color: Gray (typical)
  • Nominal cross-section profile: 2.5 mm²
  • Cross-section of solid wire (wire): from 0.25 to 4.0 mm²
  • Cross-section of flexible wire (conductor): from 0.25 to 2.5 mm²
  • Width: 5 mm
  • Maximum cross-section of connected wires: 2.5 mm² with connection bridge

Manufacturer

Type
Terminal block

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

3,45 €
14,00 €   shipping cost
