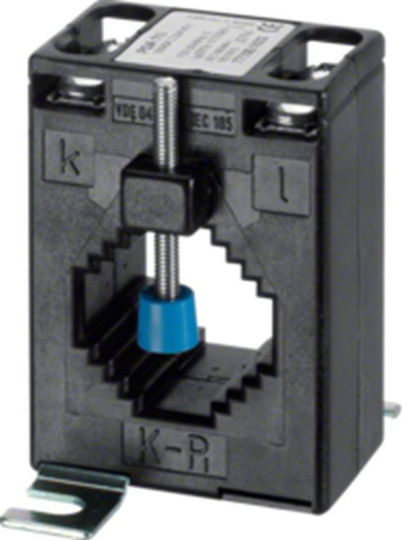

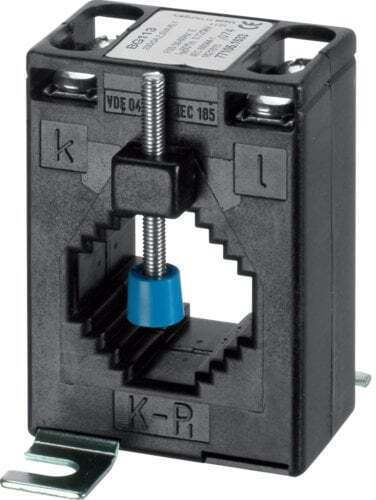

Current Transformer 200-5A SRA02005

• Type of component: Plug-in current transformer
• Mounting method: On rail or on mounting backplate
• Protection rating: 1
• Frequency: 50/60 Hz
• Insulation rated voltage: 3 kV
• Maximum primary current: 200 A
• Maximum secondary current: 5 A
• Current in the primary: 200 A
• Total power loss at rated current In: 14 W
• Depth of installed product: 30 mm
• Height of installed product: 70 mm
• Width of installed product: 49.5 mm
• Width of opening: 29.5 mm
• Height of opening: 20 mm

From Hager.
