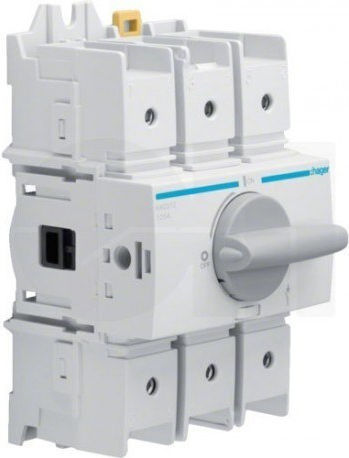

Hager 3-Poles Changeover Panel Push Button Changeover Switch 800V 160A with Visible Contacts 3x160A
Electrical Panel Push Buttons Switches

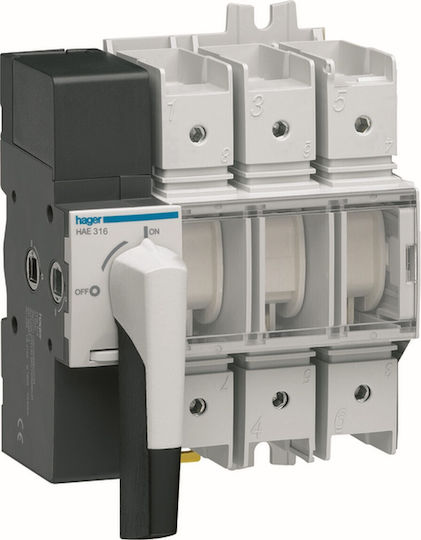

Hager 3-Poles Changeover Panel Push Button Changeover Switch 800V 160A with Visible Contacts 3x160A

Disconnect switch 3P 160A with visible wire (HAE316)

Technical specifications:

  • Rated current: 160 A
  • Rated operational voltage Ue (AC): 380/415 V
  • Rated insulation voltage Ui: 800 V
  • Number of poles: 3...

Disconnect switch 3P 160A with visible wire (HAE316)

Technical specifications:

  • Rated current: 160 A
  • Rated operational voltage Ue (AC): 380/415 V
  • Rated insulation voltage Ui: 800 V
  • Number of poles: 3 P
  • Rated impulse withstand voltage Uimp: 8000 V
  • Number of modules: 6.22
  • Connection type: screw
  • Number of wires - cable: 70mm²
  • Total power loss for rated current:...
See full description See full description
Review the product
Product report

Description

Description

Disconnect switch 3P 160A with visible wire (HAE316)

Technical specifications:

  • Rated current: 160 A
  • Rated operational voltage Ue (AC): 380/415 V
  • Rated insulation voltage Ui: 800 V
  • Number of poles: 3 P
  • Rated impulse withstand voltage Uimp: 8000 V
  • Number of modules: 6.22
  • Connection type: screw
  • Number of wires - cable: 70mm²
  • Total power loss for rated current: 22.5 W
  • Power loss per pole for rated current: 7.5 W

Type: Isolating switches

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Panel Switches Type
Changeover
Number of Poles
3
Nominal Voltage
800 V
Rated Voltage
160 A

Features & Functions

WiFi
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Disconnect switch 3P 160A with visible wire (HAE316)

Technical specifications:

  • Rated current: 160 A
  • Rated operational voltage Ue (AC): 380/415 V
  • Rated insulation voltage Ui: 800 V
  • Number of poles: 3 P
  • Rated impulse withstand voltage Uimp: 8000 V
  • Number of modules: 6.22
  • Connection type: screw
  • Number of wires - cable: 70mm²
  • Total power loss for rated current: 22.5 W
  • Power loss per pole for rated current: 7.5 W

Type: Isolating switches

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Panel Switches Type
Changeover
Number of Poles
3
Nominal Voltage
800 V
Rated Voltage
160 A

Features & Functions

WiFi
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

142,64 €
14,00 €   shipping cost
