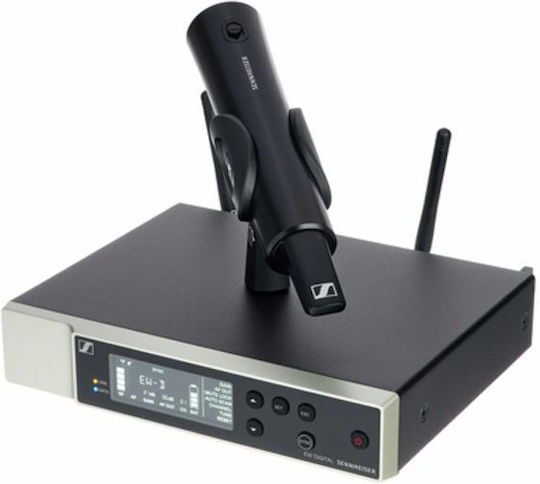

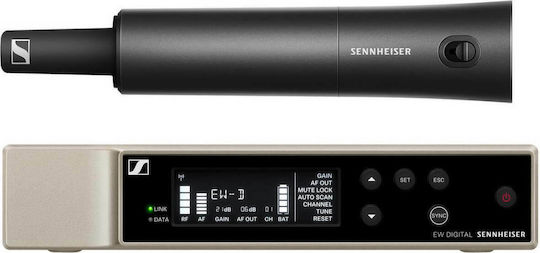

The Sennheiser EW-D-SKM-S set includes the EW-D EM stationary receiver and EW-D SKM-S handheld transmitter for digital wireless applications with the Evolution Wireless Digital system. The handheld transmitter is compatible with Evolution Wireless Digital microphone capsules, sold separately. Digital wireless technology reduces noise, interference and static bursts, while UHF transmission improves range, reliability and scalability.
The mobile app makes setup and operation easy, while automated setup establishes connections in no time. The system preserves detail in dynamic performances and supports a 56 MHz bandwidth.
- Type: Digital wireless system set with stationary receiver and handheld transmitter
- Audio link frequencies: 552–607.8 MHz
- Bluetooth Low Energy (BLE) frequencies: 2402–2480 MHz
- Selectable frequencies: Up to 2,240
- Channels: Up to 90
- Audio frequency response: 20 Hz–20 kHz (-3 dB) @ 3 dBfs
- Audio THD: < -60 dB for a 1 kHz input @ -3 dBfs
- Operating temperature: -10 °C to +55 °C
- Relative humidity: 5–95% non-condensing
- Transmitter dynamic range: 134 dB
- Battery life: Up to 12 hours with a lithium-ion battery or up to 8 hours with AA batteries
- EW-D EM receiver — dimensions: 212 x 44 x 189 mm
- EW-D EM receiver — weight: Approx. 1,000 g without antennas and power supply
- EW-D SKM-S transmitter — dimensions: 50 x 268 mm with microphone capsule or 40 x 200 mm without microphone capsule
- EW-D SKM-S transmitter — weight: Approx. 304 g with microphone capsule or 195 g without microphone capsule, excluding batteries
- Package contents: EW-D EM receiver, EW-D SKM-S transmitter, NT 12-5CW+ power supply, MZQ 1 microphone clip, rack mounting set, antenna rods, rubber feet and AA batteries
- Product Number
- 508762
- Type
- Receiver
