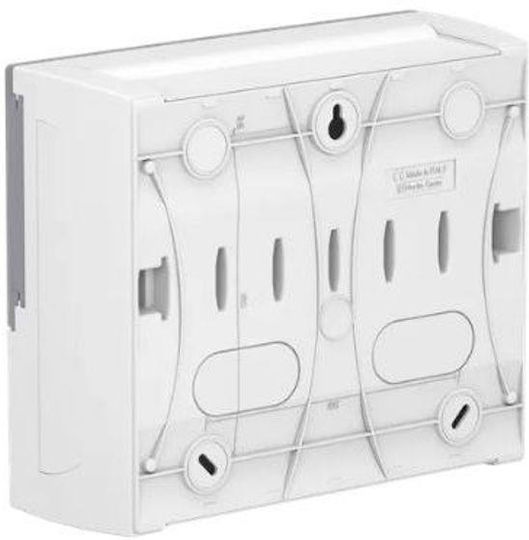

Schneider Electric Mini Pragma Wall mounted 12-Elements Fuse Box with 1 Row W268xH228xD101.5mm
Fuse Box

Schneider Electric Mini Pragma Wall mounted 12-Elements Fuse Box with 1 Row W268xH228xD101.5mm Code: MIP12112T

The Schneider Electric Mini Pragma surface-mounted electrical distribution board has one row for 12 modules and a translucent door. Technical plastic is used for the back, door and front, while the...

The Schneider Electric Mini Pragma surface-mounted electrical distribution board has one row for 12 modules and a translucent door. Technical plastic is used for the back, door and front, while the front is white (RAL 9003).

  • Mounting: Surface-mounted
  • Material: Technical plastic
  • Colour: Grey
  • Front colour: White (RAL 9003)
  • Door: Translucent
  • Rows: 1
  • Modules...
See Description & Specifications See Description & Specifications

Learn more about invoicing

Reviews (1)

Reviews

5.0
1
5.0
Review this product
  1. 1
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
  • 5
    politidism

    Verified purchase

    Very high quality

    Translated from Greek ·
    Did you find this review helpful?
Product report

Description & Specifications

The Schneider Electric Mini Pragma surface-mounted electrical distribution board has one row for 12 modules and a translucent door. Technical plastic is used for the back, door and front, while the front is white (RAL 9003).

  • Mounting: Surface-mounted
  • Material: Technical plastic
  • Colour: Grey
  • Front colour: White (RAL 9003)
  • Door: Translucent
  • Rows: 1
  • Modules per row: 12
  • Width: 268 mm
  • Height: 228 mm
  • Depth: 101.5 mm
  • Rated current: 63 A
  • Rail: Asymmetrical 35 mm DIN rail
  • Terminals: 1 earth and 1 neutral terminal, each with 8 screw outlets
  • Earth outlets: 1 × 16 mm², 3 × 6 mm² and 4 × 10 mm²
  • Neutral outlets: 1 × 16 mm², 3 × 6 mm² and 4 × 10 mm²
  • Protection rating: IP40
  • Impact resistance: IK07
  • Fire resistance: 650 °C for the door, front and back
  • Operating temperature: -25 to 60 °C
  • Standards: EN 50102, IEC 60670-24, IEC 60695-2-11, IEC 60439-3, IEC 529
  • Quality mark: IMQ

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
MIP12112T

Specifications

Placement
Wall mounted
Material
Plastic
Number of Rows
1
Number of Elements per Row
12
Colour
Grey
Protection Certification
IP40

Attributes

with Fuses
No
Waterproof
No
Cabinet
No

Dimensions

Width
268 mm
Height
228 mm
Installation Depth
101.5 mm
