Schneider Electric Tesys U Starter Industrial Type Power Base 32A LUB32
Misc Industrial Building Equipment

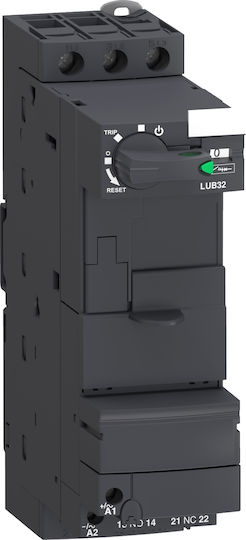

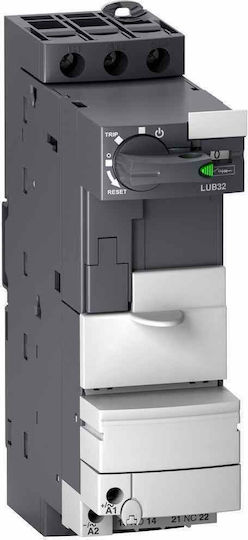

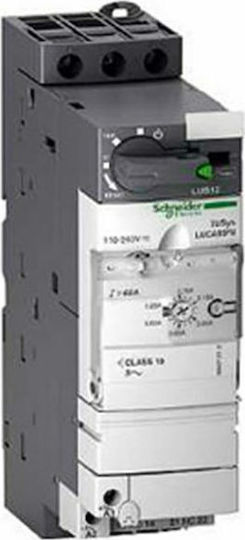

Schneider Electric Tesys U Starter Industrial Type Power Base 32A LUB32

TeSys U 32A Screw Terminal Base (LUB32)

  • Product Name: TeSys U
  • Product Type: Base - Direct Start
  • Motor Poles: 3P
  • Rated Thermal Current: 32 A
  • Control Voltage: 110...220 V DC, 110...240 V AC, 24 V AC,...

TeSys U 32A Screw Terminal Base (LUB32)

  • Product Name: TeSys U
  • Product Type: Base - Direct Start
  • Motor Poles: 3P
  • Rated Thermal Current: 32 A
  • Control Voltage: 110...220 V DC, 110...240 V AC, 24 V AC, 48 V AC
  • Power Circuit: screw terminals, cable 1.5...6 mm²
  • Construction: flexible and rigid cable
  • Tightening Torque: 0.8...1.2 N.m for control circuits
  • ...
See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

TeSys U 32A Screw Terminal Base (LUB32)

  • Product Name: TeSys U
  • Product Type: Base - Direct Start
  • Motor Poles: 3P
  • Rated Thermal Current: 32 A
  • Control Voltage: 110...220 V DC, 110...240 V AC, 24 V AC, 48 V AC
  • Power Circuit: screw terminals, cable 1.5...6 mm²
  • Construction: flexible and rigid cable
  • Tightening Torque: 0.8...1.2 N.m for control circuits
  • Dimensions: Height 145 mm, Depth 126 mm
  • Product Weight: 0.9 kg
  • Operating Temperature: -25...60 °C
  • Certifications: UL, EN 60947-6-2

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Type
Starter

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

TeSys U 32A Screw Terminal Base (LUB32)

  • Product Name: TeSys U
  • Product Type: Base - Direct Start
  • Motor Poles: 3P
  • Rated Thermal Current: 32 A
  • Control Voltage: 110...220 V DC, 110...240 V AC, 24 V AC, 48 V AC
  • Power Circuit: screw terminals, cable 1.5...6 mm²
  • Construction: flexible and rigid cable
  • Tightening Torque: 0.8...1.2 N.m for control circuits
  • Dimensions: Height 145 mm, Depth 126 mm
  • Product Weight: 0.9 kg
  • Operating Temperature: -25...60 °C
  • Certifications: UL, EN 60947-6-2

Manufacturer

Manufacturer Details

Warnings & Safety Information
Type
Starter

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

391,90 €
14,00 €   shipping cost
